Martian II Tramp VTX FPV Antenna Holder
prusaprinters

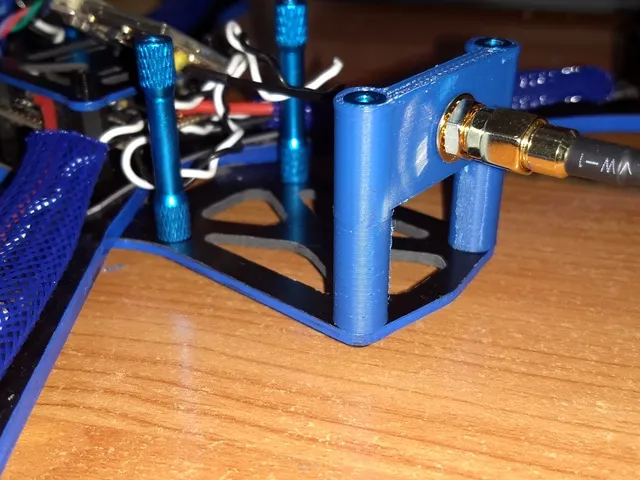

First design I created, made to fit Martian II with 6mm diameter stand offs (larger than stock) has a recess to fit Immersion RC Tramp VTX Antenna SMA Mount but will probably fit most similar VTX mounts. During my latest build I decided to design a mount to have the antenna straight out the back that would hold the inner SMA nut in place to make it easier to tighten the outer nut. Antenna screws on all the way without bottoming out on the sma connector nut. Sits high enough that you can flush mount a Matek LED and Buzzer PCB underneath the antenna mount. Now with a version for the standard 5mm standoffs. Print Settings Printer: Fabrikator Mini Mk II Rafts: Yes Supports: No Resolution: 0.2mm Infill: 30% Notes: Printed in eSun 1.75mm ABS. Bed 60 degrees, extruder 250 degrees. Post-Printing ============= Category: R/C Vehicles
