Magnetic Planetary Gear

prusaprinters

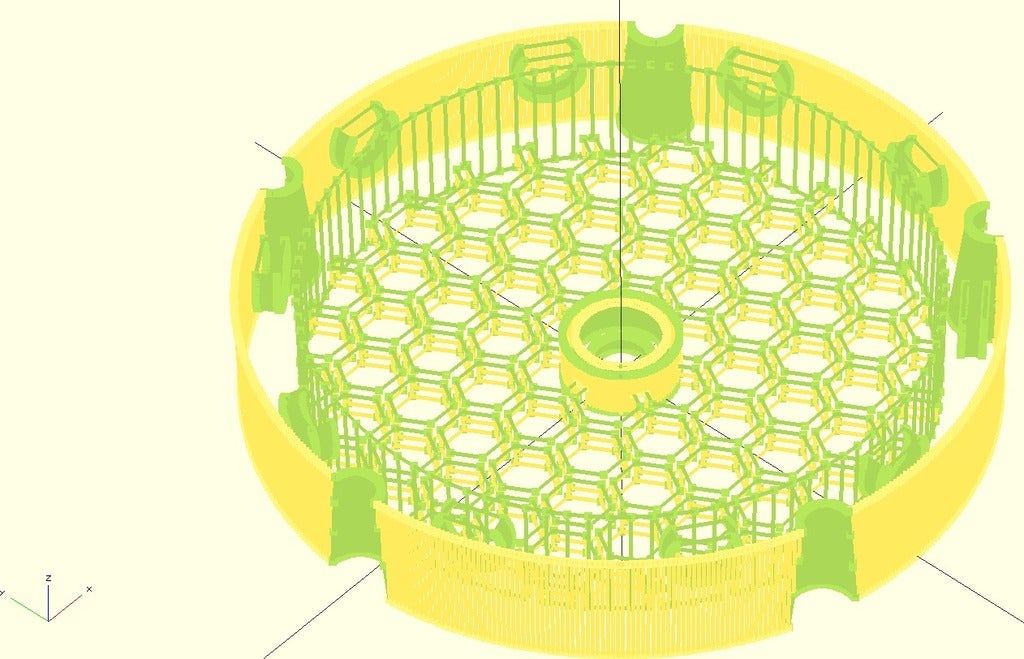

<p>The target of this project is to build a synchronous magnetic planetary gear. It's still under development, but I will keep this thing up to date.<br/> The idea is to replace regular teeth with contact- and thus friction- and lubeless magnets.</p> <h3>Print instructions</h3><h3>Category: 3D Printing Tests Summary</h3> <p>The target of this project is to build a synchronous magnetic planetary gear. It's still under development, but I will keep this thing up to date.<br/> The idea is to replace regular teeth with contact- and thus friction- and lubeless magnets.</p> <h3> Instructions</h3> <p>To build it, simply make the models fit your magnets and bearings and put in the magnets opposing each other.</p> <p>1st Rotor:<br/> 10 cylindrical Magnets, 5x1.6mm, 50mm diameter, magnets click in</p> <p>2nd Rotor:<br/> still under development.</p> <p>Planets:<br/> 4 cylindrical Magnets, 5x1.6mm, 20mm diameter, 7x3x3mm Bearing held by two printed hulls, held by M3 bolts wich themselves are being installed using the comb spacer to the stator</p> <p>Sun:<br/> 2 cylindrical magnets, 5x1.6mm, has to be fitted with M3 winding for screwing onto the main axis.</p>
