M3 M4 M5 Bolt Cutting Jig

M3 M4 M5 Bolt Cutting Jig

prusaprinters

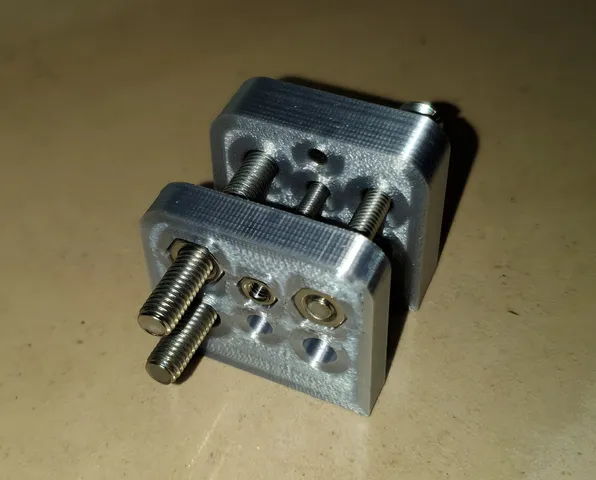

M3 M4 M5 Bolt Cutting Jig This tiny jig will help you cutting your bolts without damaging the threads and your fingers ^^Two holes to replicate length Material needed3 x M3 Hex Nut3 x M4 Hex Nut3 x M5 Hex NutOptional (keep the 2 parts attached together) 4 x 3 mm round magnets with a 2 mm depth Use bolts to pull the nuts in their sockets (0.05mm tolerance). No glue neededSecure the jig with a clamp
