Logitech C270 Mount Prusa i3 MK3

prusaprinters

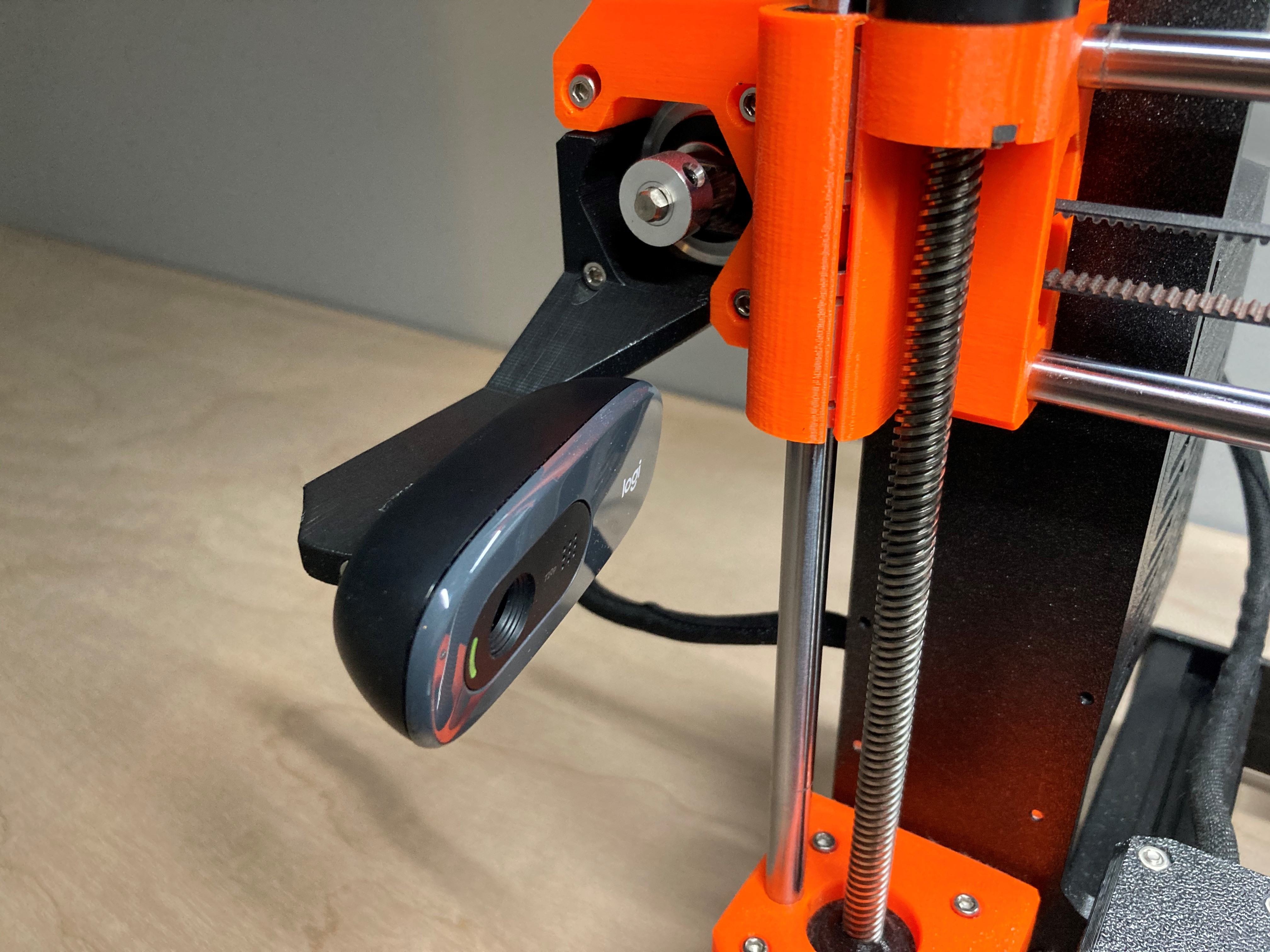

<p>Mount for a Logitech C270 webcam for the Prusa i3 MK3. Great for monitoring prints and creating time-lapses.</p> <p>This will require the removal of the original webcam base, which can be achieved by removing the foam end caps, exposing a screw. Remove that screw and push out the pin.</p> <p>Attach the mount to the X-axis motor using an M3x18mm screw. Attach the webcam to the mount using an M3x25mm screw. Both screws can be found in the Prusa i3 MK3 spare parts bag if you purchased the kit.</p> <p>Mount includes a channel to run the webcam wire underneath the X-axis motor for a clean look. You can also run the wire in the X-axis motor wire sleeve into the electronics case.</p> <p>If your camera is out of focus, you can remove the front cover and turn the lens to bring it into focus.</p> <p>This mount will probably work with the Prusa i3 MK2 as well, but I didn't have one to test with.</p> <h3>Print instructions</h3><p>Supports should only be needed for the horizontal parts of the wire channel.</p>
