Lithophane Light Box

prusaprinters

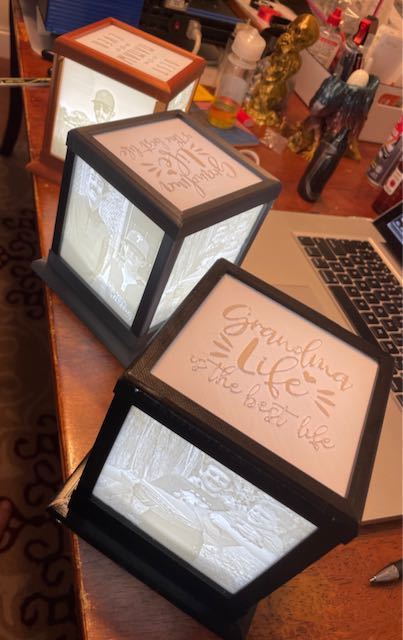

<p>Made the top, corners and bottom separate pieces. The corners are a snug fit as I designed them to be glue free but not loose enough to come apart unintentionally. This gives you the option to swap out photos. You can also make them permanent with a little super glue. Just don't glue the top litho panel so you can slide it out to turn the light on! I used a battery operated LED light puck from Wal-Mart that slides right in to the bottom hole feature.</p> <p>UPDATE: Included a few designs for the top panel and added photos of a few completed boxes.</p> <p>OVERHANG SUPPORT: needed for the legs and the top panel. See photo example for recommended support areas.</p> <p>You get two in a pack for $9.00. &gt;&gt; <a href="https://www.walmart.com/ip/GE-LED-Wireless-Puck-Lights-Battery-Operated-Touch-Activated-2-Pack/168006227">https://www.walmart.com/ip/GE-LED-Wireless-Puck-Lights-Battery-Operated-Touch-Activated-2-Pack/168006227</a></p> <p>Corners can be printed flat without support.</p> <p>I use Flat Lithophane Maker &gt;&gt; <a href="https://lithophanemaker.com/Framed%20Lithophane.html">https://lithophanemaker.com/Framed%20Lithophane.html</a> for the litho photo stl generation.</p> <p>Dimensions for the lithograph side panels are 98mm x 105mm x 3mm.</p> <p>Dimensions for the top panel are 105mm x 110mm x 3mm.</p> <h3>Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Anet</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>A8</p></div> <p><strong>Rafts:</strong></p> <p>No</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div> <p><strong>Resolution:</strong></p> <p>.02</p> <p class="detail-setting infill"><strong>Infill: </strong> <div><p>15%</p></div> <p><strong>Filament:</strong> GizmoDorks PLA Black</p> </p></p></p> Category: Decor
