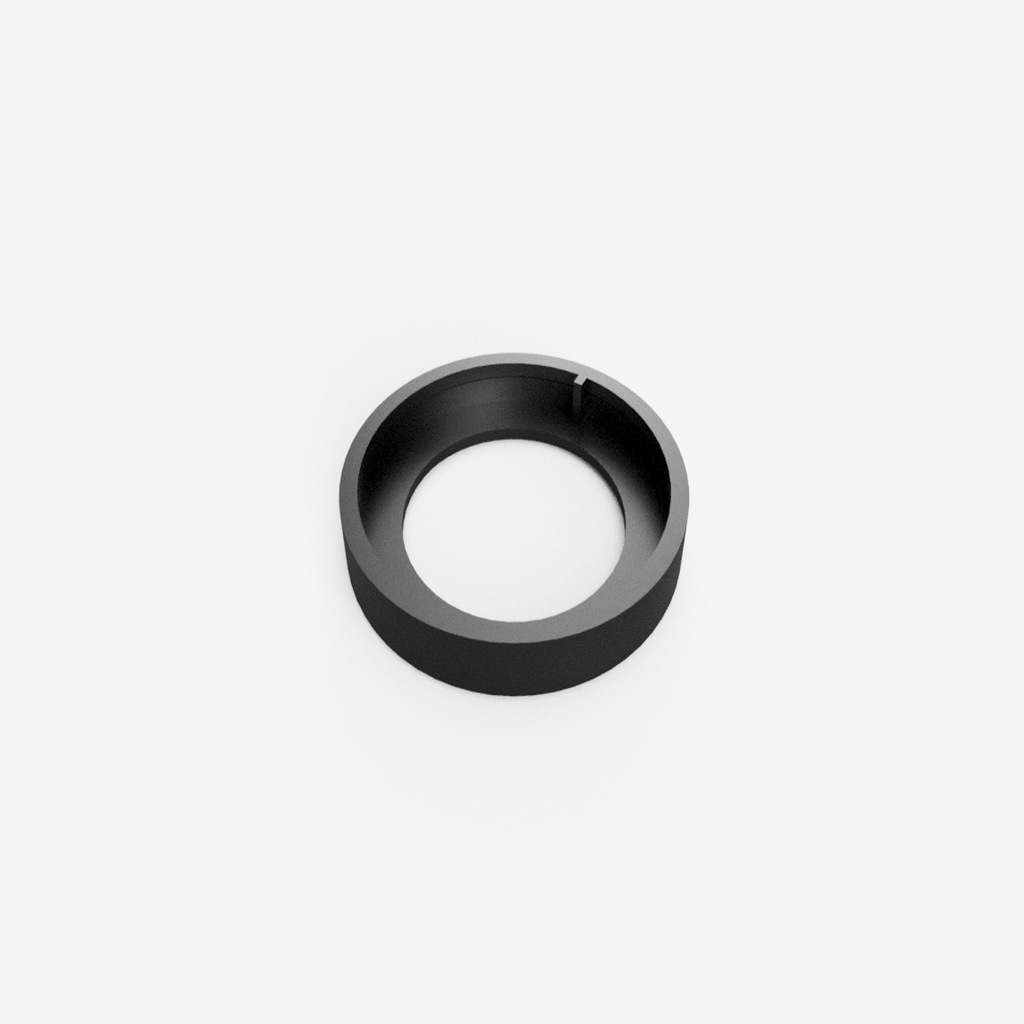

LEICA M10 Eyepiece

prusaprinters

<p>This Leica M10 eyepiece is attached to the camera body with glue so it's easy to lose and it's a very expensive rubber.</p> <p>So let print it at home.</p> <h3> Print Settings</h3> <p><strong>Printer:</strong></p> <p>East3D Gecko</p> <p class="detail-setting rafts"><strong>Rafts: </strong> <div><p>No</p></div>**Supports:** No <p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.125</p></div>**Infill:** 25% <strong>Filament:</strong> ESUN TPU (ESUN eLastic) Black <br/> <p class="detail-setting notes"><strong>Notes: </strong> </p><div><p>For a good result, I print it with a 0.25mm nozzle. Set extrusion width to 0.25mm to match the nozzle. Print slowly.</p></div> Post-Printing ============= <p class="detail-caption"><strong>Use B-7000 glue to attach the eyepiece to the view finder.</strong></p> <p class="detail-image"><img src="https://cdn.thingiverse.com/assets/09/58/06/87/7d/IMG\_20190829\_004807.jpg"/></p> <p class="detail-caption"><strong>Use IPA (rubbing alcohol) to clean the exceed glue.</strong></p></p></p> Category: Camera
