LED Panel wall / ceiling mount clips (8mm, MultiClip)

prusaprinters

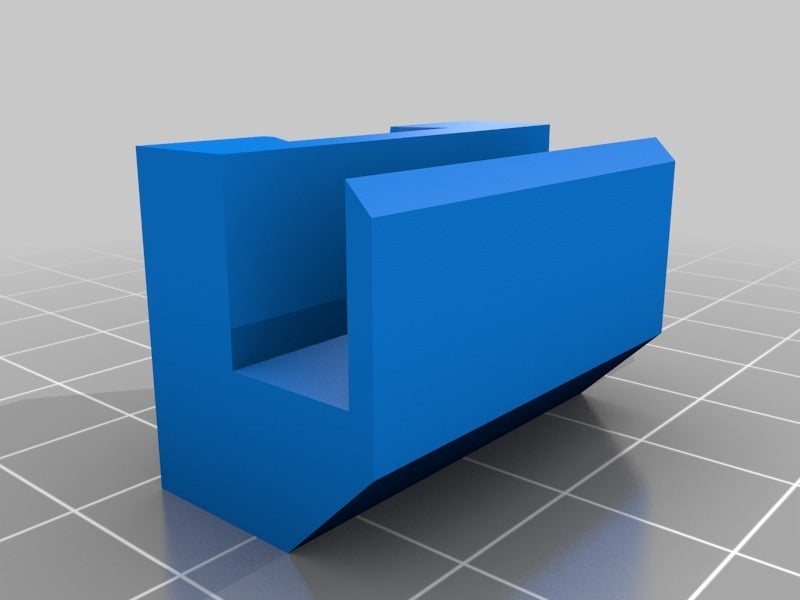

<p>This is a holder clip to mount the 60x60cm LED panel named "Kobi" by manufacturer Nelio or any other LED Panel with a frame thickness of 8mm to a wall or ceiling and avoid the bulky frame that often comes with the panel originally.</p><p>You will need at least 4 of these clips for a panel, along with one <a href="https://www.printables.com/de/model/44003-multiclip-object-mounting-system">MultiClip</a> per holder to fix the holders in the way you want to. <a href="https://www.printables.com/de/social/95833-layershifter/collections/33827">You can find the MultiClip in my public designs</a> (with extensive explanation).</p><p>I recommend to try which sides of the panel are getting warm during operation of the panel and therefor might affect PLA stability if you use the clamps there. Place the clamps so that they are not in the warmest spots or use something like PETG with a higher melting point. Mount two of the holders on one side, then put in the panel and slide the other two holders onto their multiclips. Do not mount all four holders and try to slip in the panel afterwards. There are often screws on the back of the panel which will crack the holder clamps if you try that.very</p><p>See the picture for an impression of the mounted result.</p><p>If you like the MultiClip idea you might want to have a look at some <a href="https://www.printables.com/de/social/95833-layershifter/collections/33827">more MultiClip-enabled designs</a>. You are also <a href="https://www.printables.com/de/model/44004-multiclip-object-mount-templates">very welcome to use the MultiClip Templates</a> for your own objects.</p><h3>&nbsp;</h3><h3>Print Settings</h3><p><strong>Rafts:</strong> No<br><strong>Supports:</strong> No<br><strong>Resolution:</strong> 0.15<br><strong>Infill:</strong> 22%</p><p><strong>Notes:</strong></p><p>The part should print fine without any support.</p>
