LED night lamp

prusaprinters

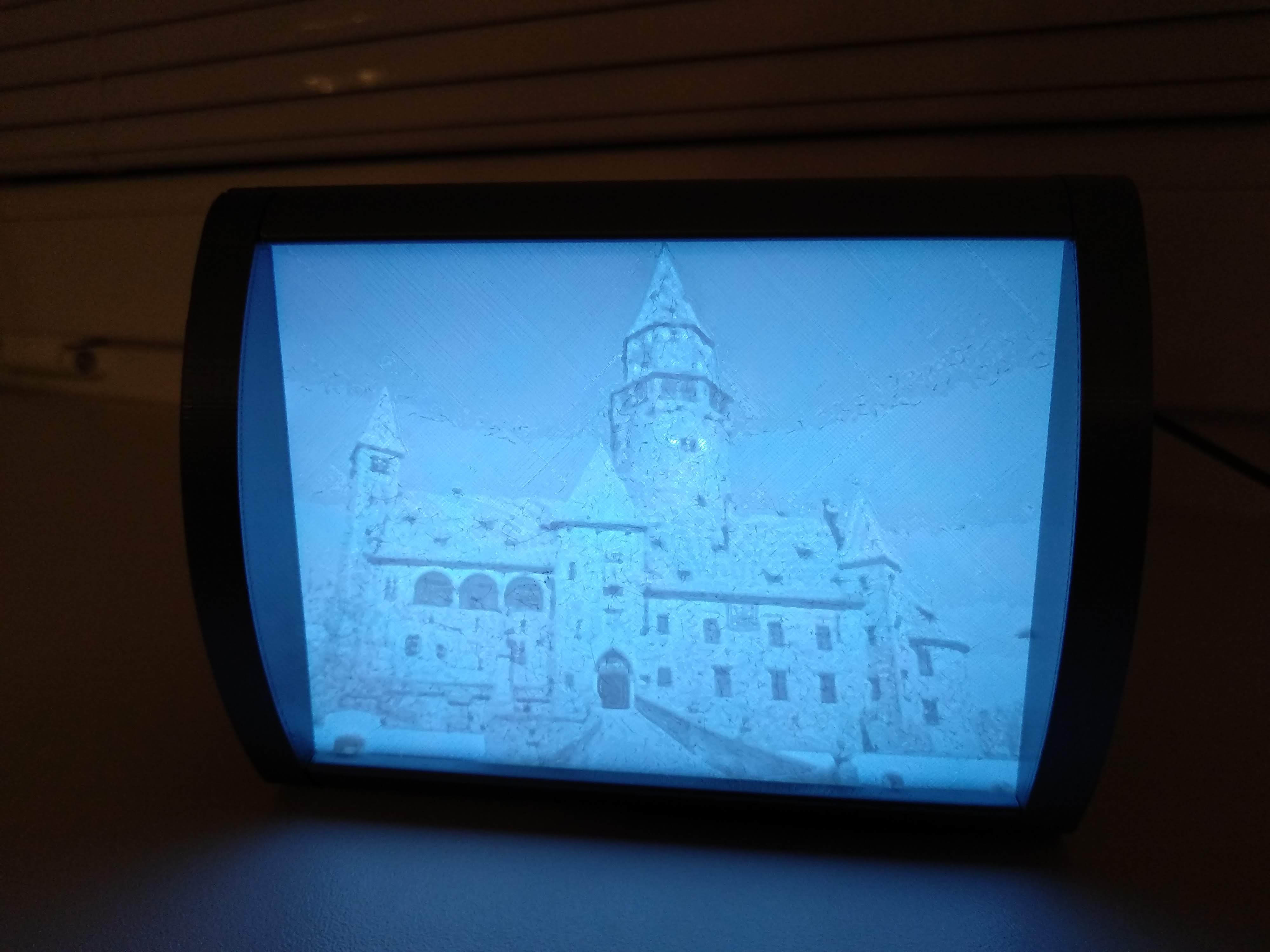

<p>This lamp is based on combination of articles from Prusa printers blog (<a href="https://www.prusaprinters.org/3d-printing-lamps-and-embedding-led-lights/">https://www.prusaprinters.org/3d-printing-lamps-and-embedding-led-lights/</a> and <a href="https://www.prusaprinters.org/from-2d-to-3d-how-to-turn-a-picture-or-a-photo-into-a-3d-model/">https://www.prusaprinters.org/from-2d-to-3d-how-to-turn-a-picture-or-a-photo-into-a-3d-model/</a>). The lamp is desinged for photos of 100 × 75 × 2 mm. The picture in lamp can be changed easily because one side is removable and joint fits together by 4 magnets. The other side (cover_B) is glued to the body after LED cabling is installed. You can use LED light strip plugged to USB of 10 mm widht. The lamp can be oriented on height too.</p> <p>Additional material:<br/> 4 × neodymium magnet 10 × 7 × 2 mm<br/> LED light strip with remote control, USB</p> <h3>Print instructions</h3><p>Infill 15 %, Layer 0,15 mm<br/> Supports for body and cover_A; on buildplate only</p>
