LED Holder for K2Van's CR-6 Daughterboard Mount

prusaprinters

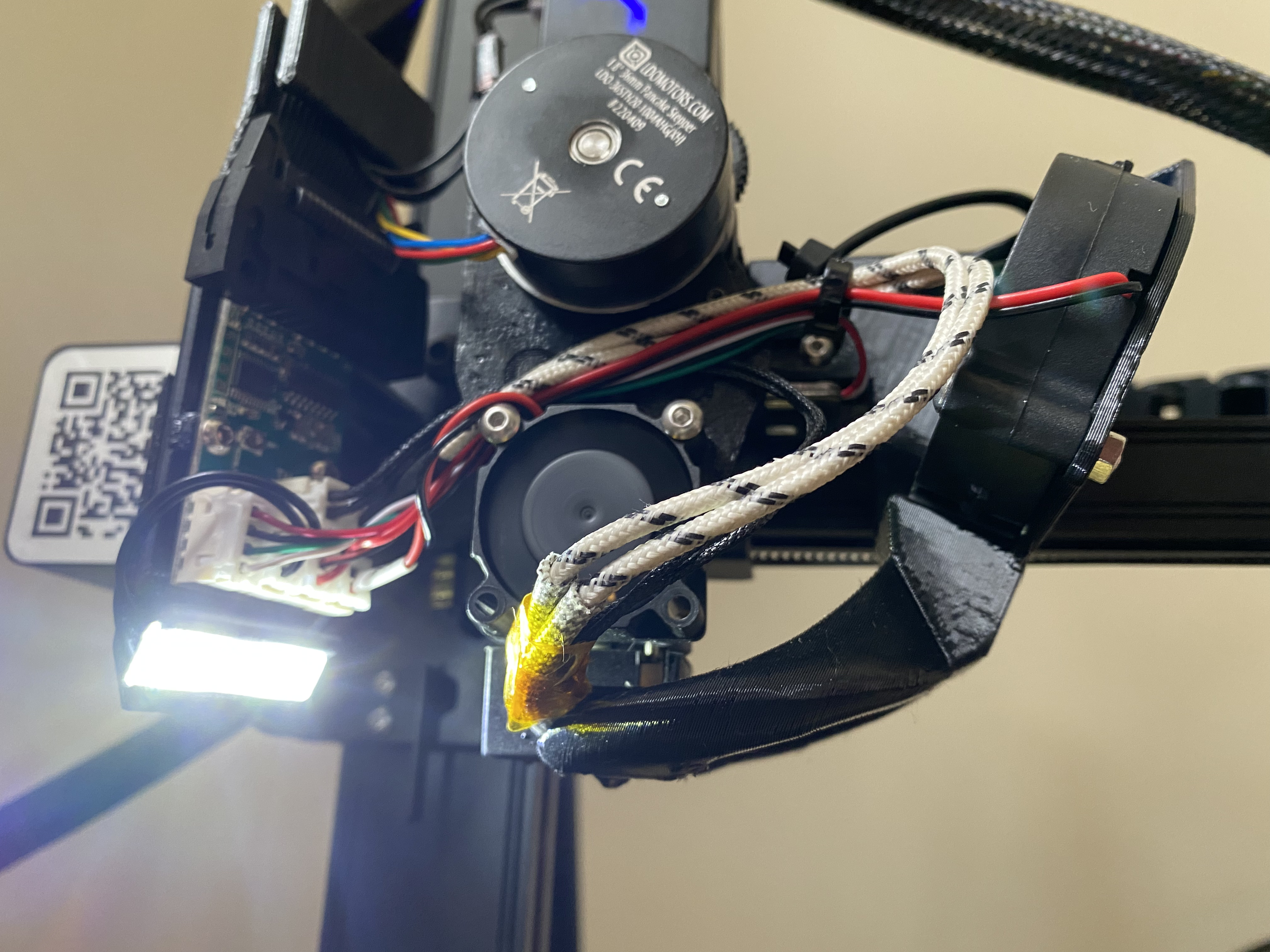

<p>This is a holder for LED strips for K2Van's Daughterboard Mount and direct drive upgrade for the Creality CR-6 SE/Max printers.</p><p><a href="https://www.printables.com/model/162434-creality-cr-6-daughterboard-mount">https://www.printables.com/model/162434-creality-cr-6-daughterboard-mount</a></p><p>&nbsp;</p><p><strong>Hardware/Tools:</strong></p><p>-(2) 12mm M3 screws (for mounting both the daughterboard and LED Holder)</p><p>&nbsp;</p><p>-5v LED Strip (<a href="https://www.aliexpress.com/item/3256803332346067.html?spm=a2g0o.order_list.0.0.21ef1802jf43vF">https://www.aliexpress.com/item/3256803332346067.html?spm=a2g0o.order_list.0.0.21ef1802jf43vF</a>)</p><p>&nbsp;</p><p>-JST XH 2-pin male connector (<a href="https://www.aliexpress.com/item/2251832777528455.html?spm=a2g0o.order_list.0.0.1d321802IoybxA&amp;gatewayAdapt=4itemAdapt">https://www.aliexpress.com/item/2251832777528455.html?spm=a2g0o.order_list.0.0.1d321802IoybxA&amp;gatewayAdapt=4itemAdapt</a>)</p><p>&nbsp;</p><p>-Crimp Tool for JST-XH pins and wire</p><p>&nbsp;</p><p>-(Optional) Overture Clear PETG for the Diffuser</p><p>&nbsp;</p><p><strong>Suggestions:</strong></p><p>-I recommend printing one or all of the diffusers that slide over the LEDs and help take the sharpness away from the light. Four different diffusers are available - use whichever thickness is best for you. I utilized Overture Clear PETG for the Diffuser and the “Super Thick” Diffuse model and I am satisfied with the results.</p><p>-The original design was for a 9mm LED strip, but the LED strip linked above is 8mm. This still works fine, but it would be better if it were shortened. I would recommend anyone using this with an 8mm strip to utilize the adhesive strip to hold it in place in the models current state OR utilize the diffuser model to help hold the LED in place.</p><p>&nbsp;</p>
