Landinggear for Eclipson Model A (Free Version)

prusaprinters

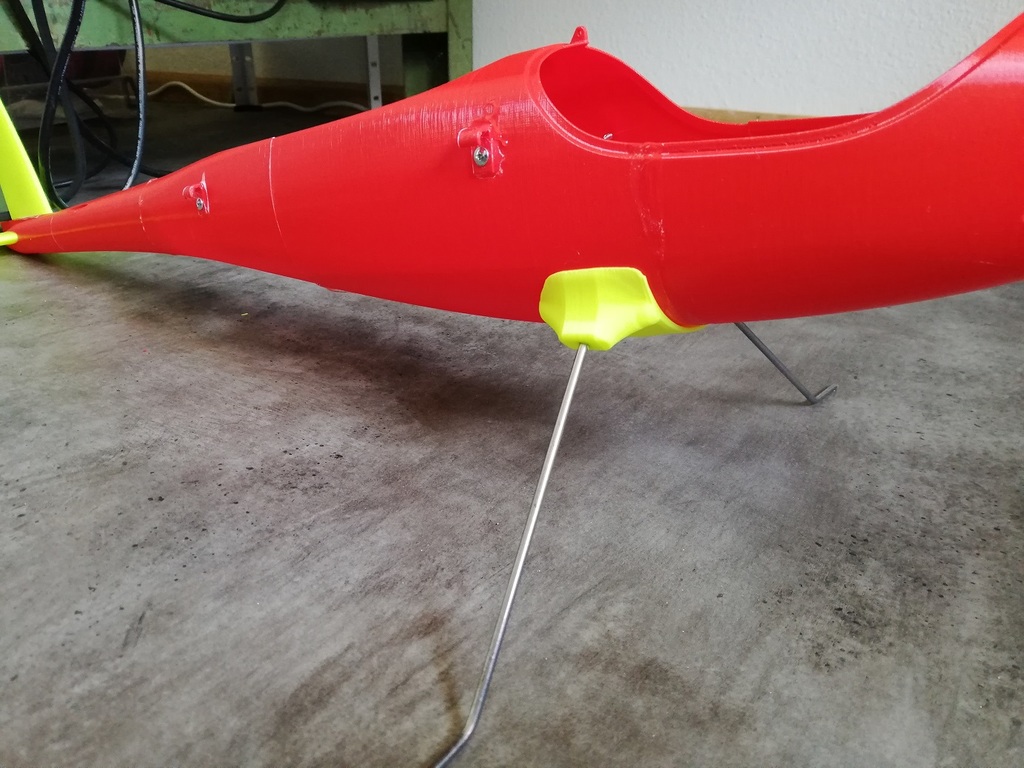

<p>I downloaded the Free version of Eclipsons Model A. but there is the fuselage with the Landinggear not included. So i designed one to glue on the free version.</p><p>it takes D3mm steelrods, wich are bended in shape.<br/>15mm then 90° angle, then 125mm and then 25mm 40°angle.</p><p>the Landinggear has an arrow to show wich side ist the front.<br/>it gets glues 1.5mm behind the Gluejoint of the mainfuselage.</p><p>Link to the Free .stl of the Plane:<br/><a href="https://www.eclipson-airplanes.com/modela">https://www.eclipson-airplanes.com/modela</a></p><p> </p><p>also check out the parts to make a stronger wing:</p><p><a href="https://www.prusaprinters.org/prints/66510-centerwingspar-eclipson-model-a">https://www.prusaprinters.org/prints/66510-centerwingspar-eclipson-model-a</a></p><p> </p><h3>Print Settings</h3><p><strong>Printer Brand:</strong></p><p>Prusa</p><p> </p><p><strong>Printer: </strong></p><p>I3 MK3S</p><p><strong>Rafts:</strong></p><p> </p><p>Yes</p><p> </p><p><strong>Supports: </strong></p><p>No</p><p><strong>Resolution:</strong></p><p> </p><p>0.2</p><p> </p><p><strong>Infill: </strong></p><p>20</p><p><br/><strong>Filament:</strong><br/><br/>Purefil PLA <br/> </p><p><strong>Notes: </strong></p><p>included my Projectfile from Prusaslicer!</p><p>Print the Tire with TPU i used 2 Perimeters and no Infill<br/>the Rims can be printet normel with PLA</p><p> </p><p> </p><p> </p><p> </p><p>Category: R/C Vehicles</p>
