Lamp Base #2

prusaprinters

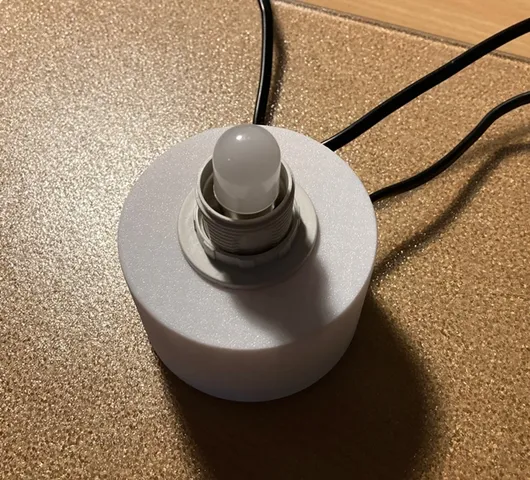

An 80 mm general purpose stand for a lamp using an e14 socket. Can be used for a lamp shade, 30 mm space can be secured with the e14 collar.Inserts for the nut base are shown, allowing the vase to be connected with the M3 by 10mm hex screws.3 of the 12mm mutter, nuts, can be glued into the attachable base to add some weight to the lamp base.An STL for a thin opaque shim is also provided. When using lighter materials, the light can bleed through to the base. The shim blocks the light to stop that. The shim goes between the shade and the base.No supports required.The fassung-lamp socket ( e14-28 mm):     https://www.amazon.de/dp/B097K4YNL9The electrical cable and switch:     https://www.amazon.de/dp/B002DAOX58The E14 Bulb used here:     https://www.amazon.de/dp/B0B5MPL9MX3 x M3 by 10 Screws    https://de.aliexpress.com/item/32443118299.html?3 x M12 Mutter (Nut for weighting)    https://www.amazon.de/dp/B01M30BU88?3 x M3 Inserts    https://www.amazon.de/dp/B08BCRZZS3? The slicer settings for the stand and screw on bottom piece:.20 mm Standard and (All standard settings and speeds, Random seam settingsFilament:  Prusament Galazy Black/ Vanilla Weight Examples using this base:https://www.printables.com/model/851656-lamp-5https://www.printables.com/model/851687-lamp-6 https://www.printables.com/model/851731-lamp-7https://www.printables.com/model/851746-lamp-8
