Kossel PSU rear Mounting (Or any 2020 frame)

cults3d

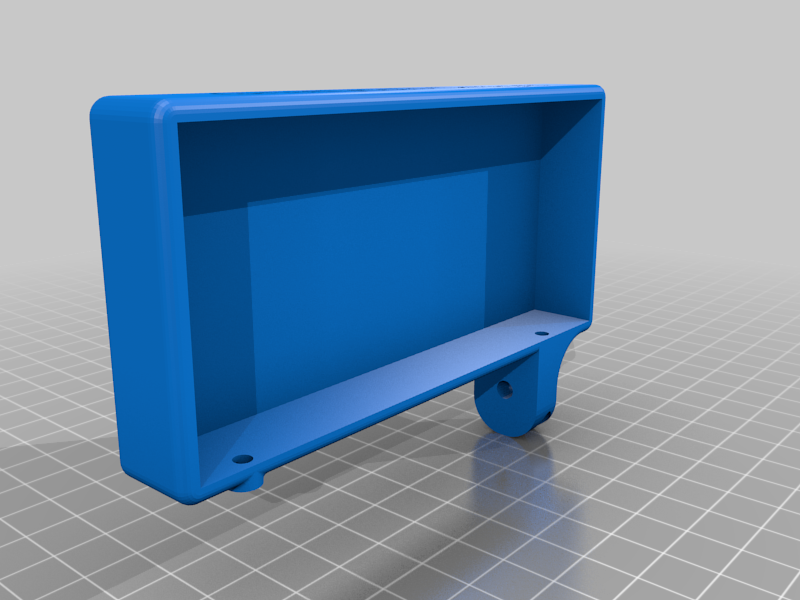

Didn't like the PSU at the front of the machine, especially at the jaunty angle Anycubic decided to mount it at so designed this mounting system so I could move it to the rear tower frame. I'm trying to reduce the footprint of the printer so I can fit it into an IKEA Lack enclosure and this is the final step. The bottom piece houses the contacts and terminals of the PSU, together with the Mains input socket and optional voltmeter. These are as cheap as chips and I got this one on Amazon (https://www.amazon.co.uk/gp/product/B07J2NQSFG/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1) There's also a version without. The bottom cover fixes to the 2020 frame using a pair of M4 x 8mm countersunk screws and M4 T-nuts. (Screws on Amazon https://www.amazon.co.uk/gp/product/B00DYUC7EK/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1 The top cover fixes to the frame with an M4 x 8mm Cap head screw. The PSU is secured to the cover and top support with 1 x M3 x 20mm cap head screw, 2 x M3 x 6mm cap head screw.
