Kossel Mini Glass Clamp for 195mm

prusaprinters

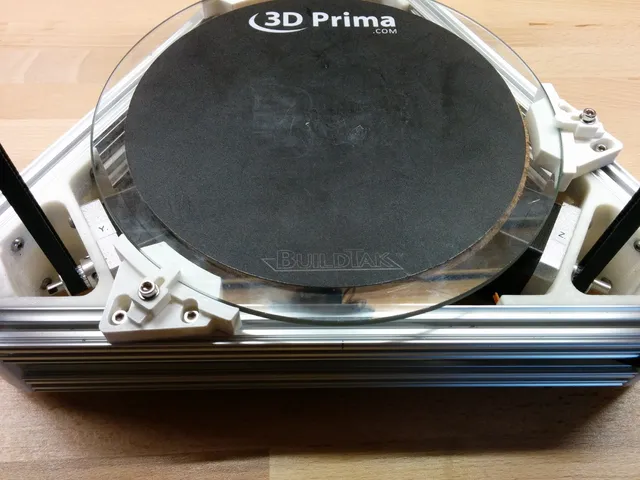

Kossel Mini bed clamp for a round 195 mm bed, use six M3 x 8mm screws to fix the three bases and three M3 14-16mm with regular screw to fix the bed with the clamp.This design is inspired from "Mini Kossel FSR Mount" which is linked as source.Print SettingsResolution:0.2 - 0.25Notes: Use a high infill of 60% for the clip, so that the part will be stable enough. I printed base and clamp with 2 perimeter and 3 top/bottom layers.
