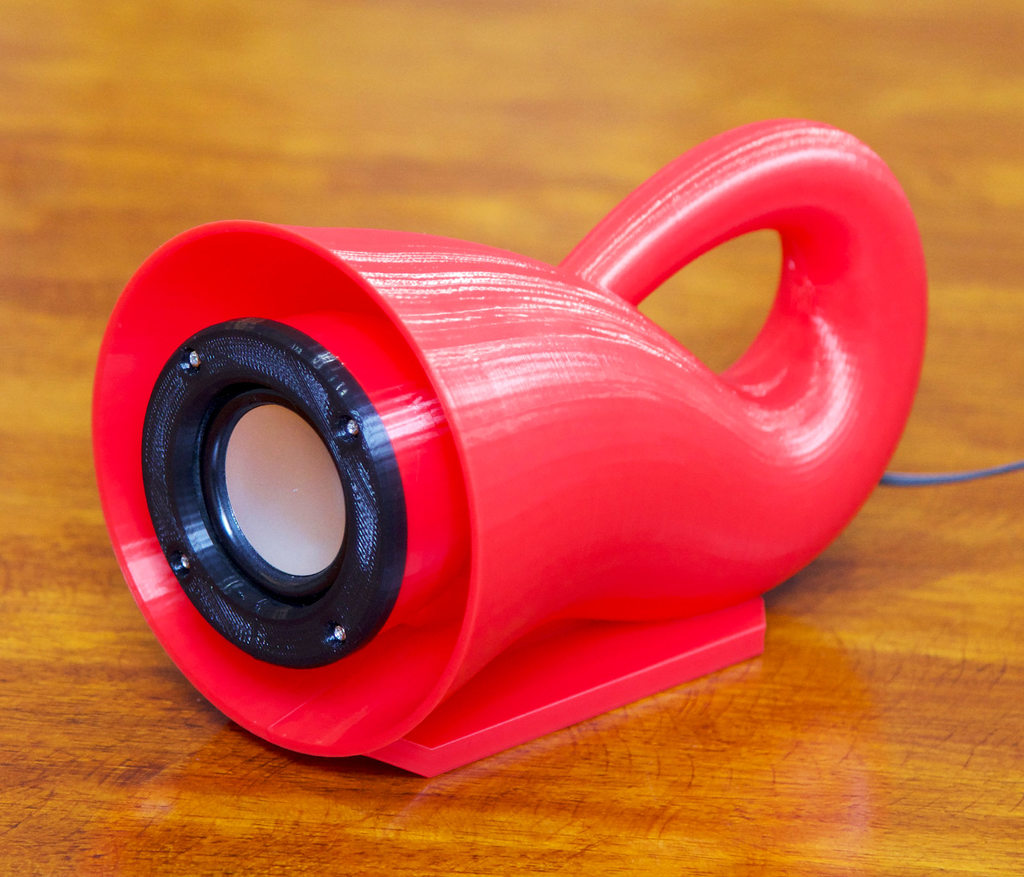

"Klein bottle" back-loaded horn speaker

prusaprinters

<ul> <li>Enclosure of back-loaded horn speaker inspired from Klein bottle.</li> <li>It is designed for 50mm (2inch) speaker unit, but it can be easily scaled up or down.</li> <li>Easy to print without support.</li> <li>The dimension of the enclosure is 182(D) x 112(H) x 108(W) [mm] (excluding speaker unit and bezel).</li> </ul> <h3>How to make</h3> <div><p>This enclosure is originally designed for very cheap (300 Yen = 3 USD) powered speaker sold in DAISO. You can find similar speaker units at amazon.com.</p></div> <p class="detail-image"><img src="https://cdn.thingiverse.com/assets/55/82/e8/71/1c/print.jpg"/></p> <div><p>The enclosure can be printed as a single part (except bezel) without supports. With your slicer, rotate the model on the build table to be front face down. Bezel should be printed out separately. It has a small (5mm) hole for passing through the electric wire.</p></div> Scale up or down ================ <p class="detail-image"><img src="https://cdn.thingiverse.com/assets/ff/39/dd/d5/5f/2.jpeg"/></p> Category: Audio
