Kingroon KP3S Y tensioner
prusaprinters

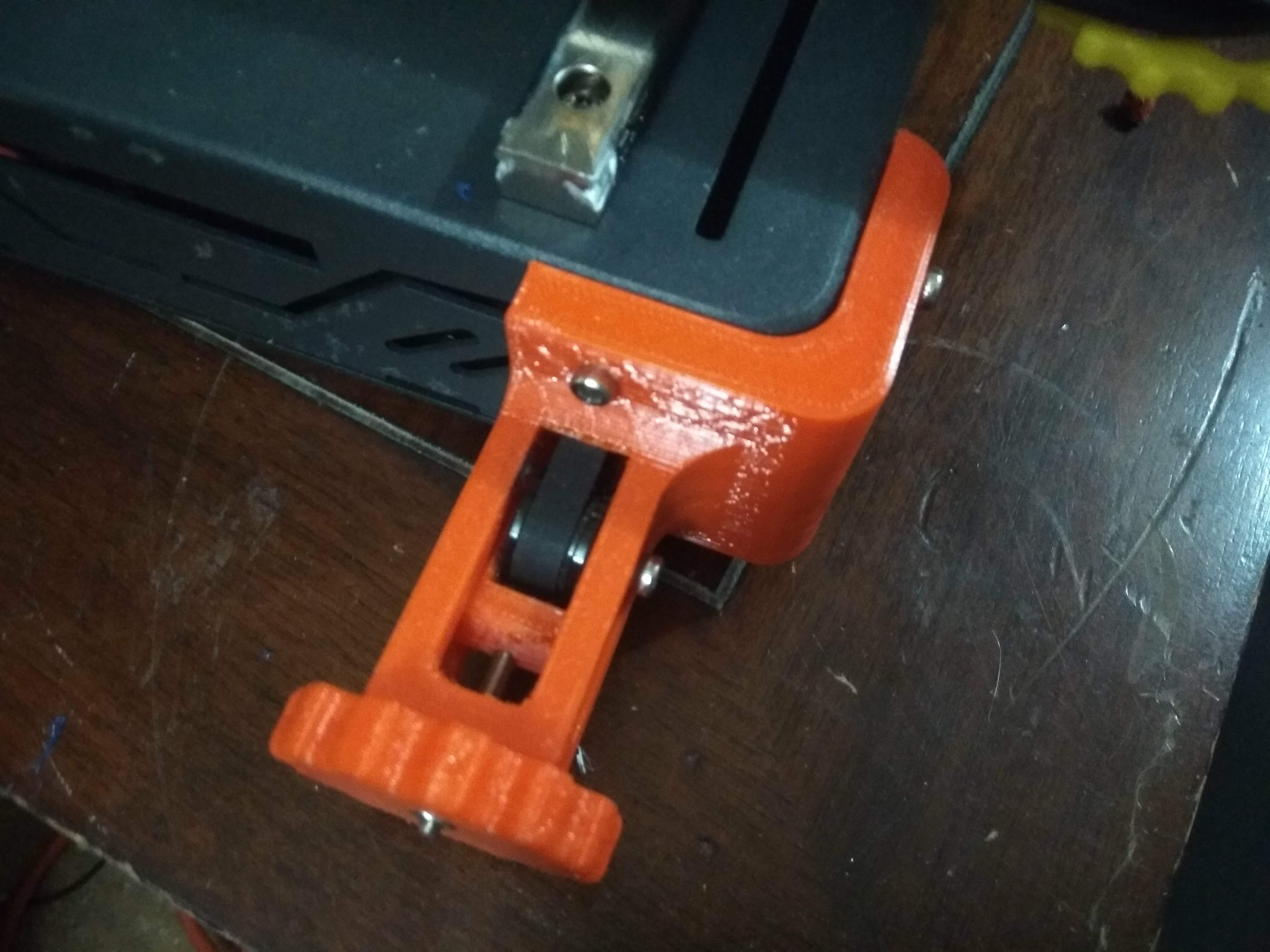

<p>You will need to replace the belt as it will be too short. Once the bracket is printed, stick it on with a small dot of CA glue or some tape. Mark the four bolt holes and the large rectangle opening in the middle. Drill out the holes and I used a rotary tool to cut out the rectangular hole. I chose to tap the bolt holes and then use a nut as well on the inside to hopefully keep vibration from loosening anything up over time. The idler holder and knob are the same as my X tensioner and are installed the same. Again I would recommend replacing the idler pulley with one that has teeth and a 3mm hole. </p>
With this file you will be able to print Kingroon KP3S Y tensioner with your 3D printer. Click on the button and save the file on your computer to work, edit or customize your design. You can also find more 3D designs for printers on Kingroon KP3S Y tensioner.
