Kingbright Light bar [7.5x14mm] style

prusaprinters

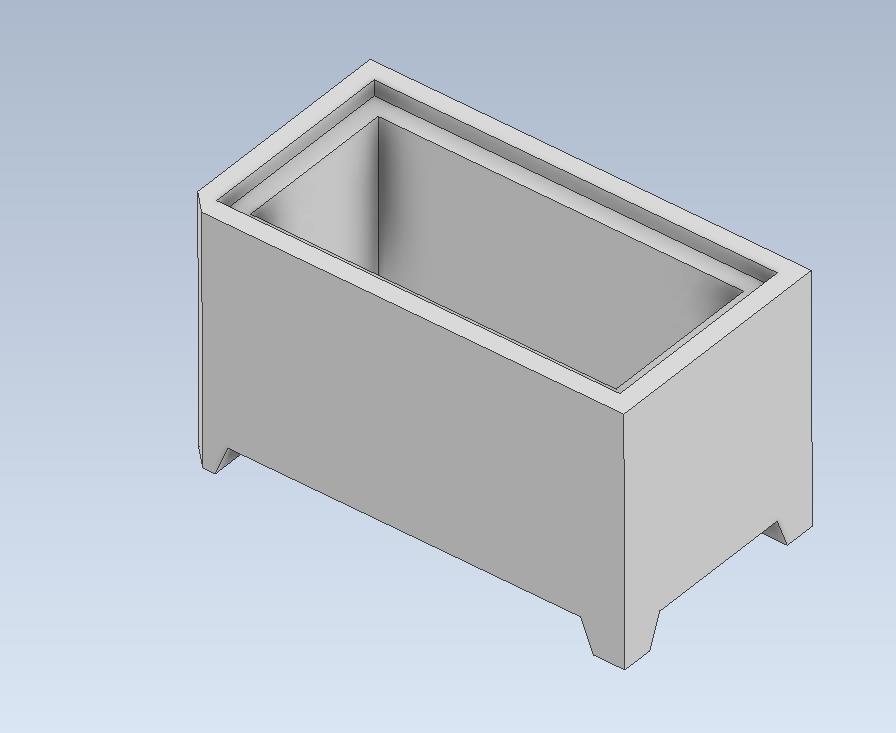

<p>Drew this up for R2D2 builders to use in R2's data panel board.</p> <p>Size is 1:1 scale, I've made it hollow to allow normal LED's to be fitted and also a recess to allow a defuses screen to be added, either a printed one or one cut out of plastic [example material].</p> <p>I left the unit with no holes so that these can be drilled by yourself to suit you layout.</p> <h3>Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>TEVO</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>Tarantula</p></div> <p><strong>Rafts:</strong></p> <p>No</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>Yes</p></div> <p><strong>Resolution:</strong></p> <p>0.15</p> <p class="detail-setting infill"><strong>Infill: </strong> <div><p>25%</p></div> <p><strong>Filament:</strong> n/a PLA white</p> <p><br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>Support may not be needed, depending on how you print.<br/> Infill at your discretion. <h3>How I Designed This</h3> <p>Using dimensions published by Kingbright, these are based on the 'DE2' light bar</p> </p></div></p></p></p> Category: Electronics
