Jig for cutting 1.75mm PTFE Tubing

prusaprinters

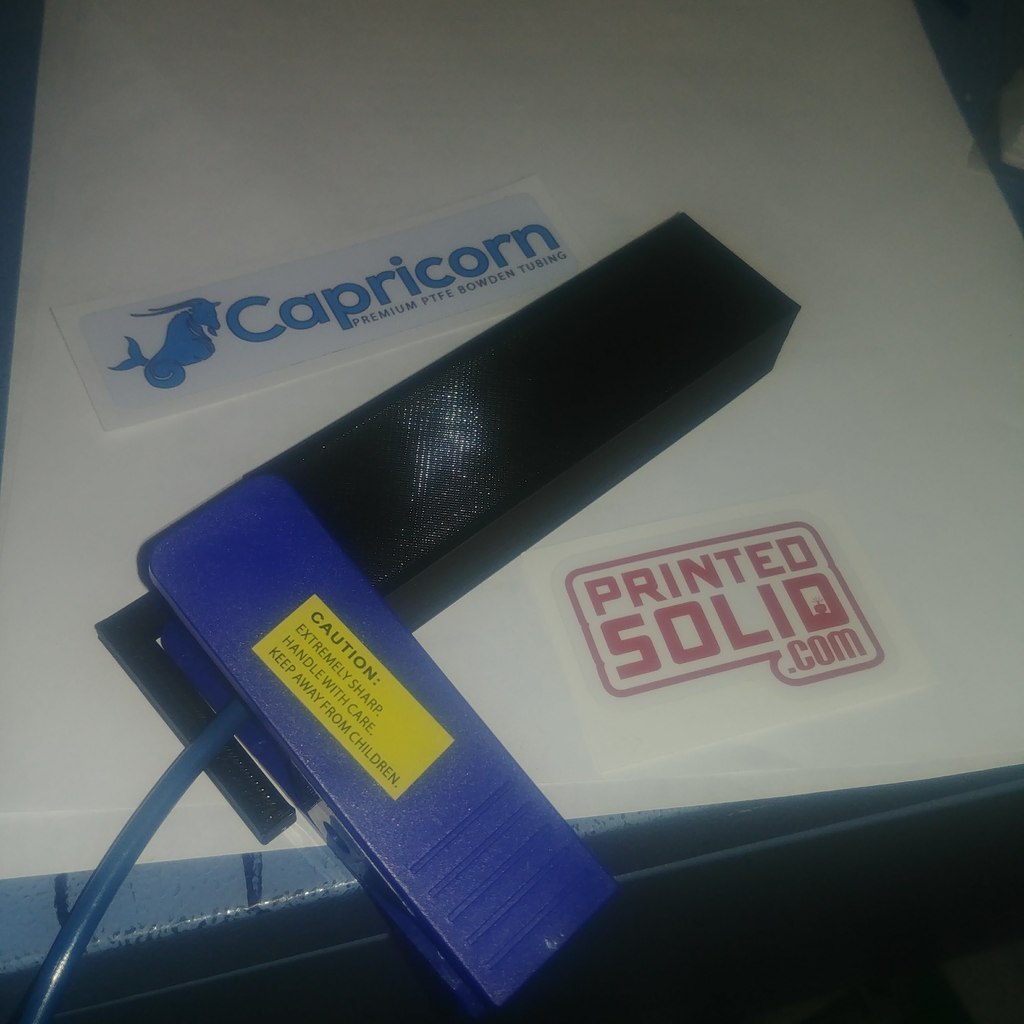

<p>This is a jig for cutting Bowden Tubing down to 120mm lengths using the Capricorn tubing cutter. We stock <a href="http://printedsolid.com/products/capricorn-xs-reduced-friction-bowden-tubing">Capricorn tubing</a> at <a href="http://printedsolid.com">PrintedSolid.com</a> for <a href="http://printedsolid.com/e3d">E3D</a> and other hotends. Manually measuring the lengths got to be a bit annoying, so we made this jig. As an added bonus, if your printer is calibrated right, it acts as a no-go gauge for tubing that is out of spec on the high side.</p> <p>As long as you're able to do even moderate bridging, you can print this with no infill.</p> <p>If you want to modify it for a different length, you are welcome to access the original on onshape</p> <h3> Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>LulzBot</p> <p><p class="detail-setting printer"><strong>Printer: </strong> <div><p>Mini</p></div><strong>Rafts:</strong></p> <p>No</p> <p><p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div><strong>Resolution:</strong></p> <p>.25mm</p> <p><p class="detail-setting infill"><strong>Infill: </strong> <div><p>no</p></div></p> <p><strong>Notes:</strong></p> <p>Print with about 3 shells.</p> </p></p></p> Category: Hand Tools
