iPad Pro Magnet Arm Mount Adapter

prusaprinters

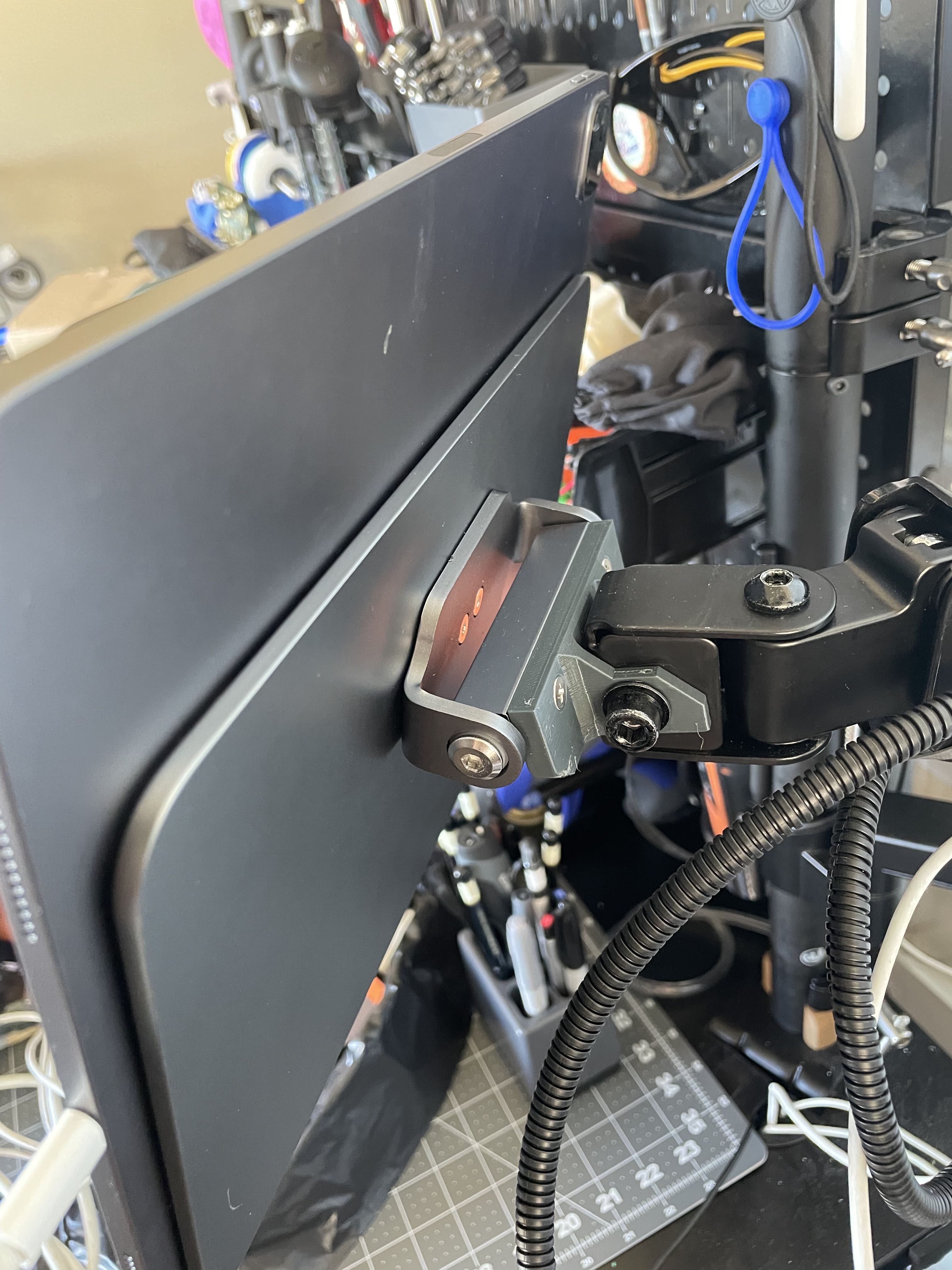

<p>Parts:</p><ul><li><a href="https://www.amazon.com/dp/B0779JSRH5?psc=1&amp;ref=ppx_yo2ov_dt_b_product_details">WALI Monitor Arm</a></li><li><a href="https://www.amazon.com/dp/B09BVW8ZWS?psc=1&amp;ref=ppx_yo2ov_dt_b_product_details">BongBingBoo iPad Pro Mount</a></li><li>1x Split Ring washer</li></ul><p>&nbsp;</p><p>Assembly:</p><p>&nbsp;</p><ol><li>Remove the top part of the magnetic mount from the stand by removing the two screws in the back. You should still have the bit that rotates attached to the magnetic mount</li><li>Attach the adapter using the screws you just removed</li><li>Remove the VESA plate and the vertical adjustment bar it is attached to. The end of the arm should have just a hole for a bolt and be able to move side to side. See the picture</li><li>Attach the adapter using the original bolt and optionally add a split ring washer to prevent it from moving up and down.&nbsp;</li><li>Done! You will be able to rotate the monitor 360 degrees and adjust the tilt using the assembly from the iPad mount</li></ol><p>&nbsp;</p>
