Inner diameter gauge (2-20mm)
prusaprinters

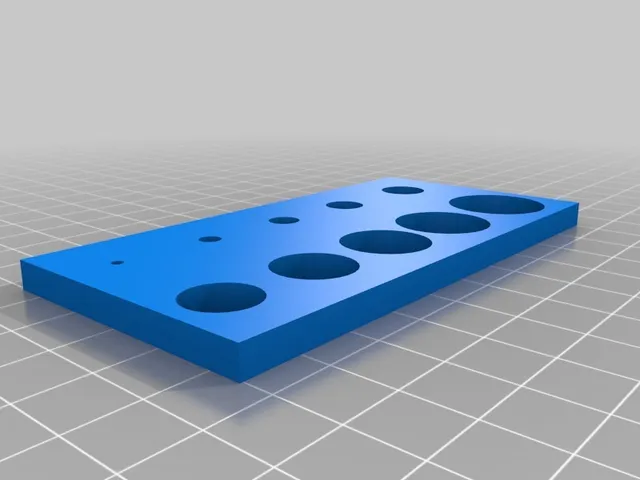

I created that because I wanted to measure the precision of inner holes of my A5. Interestingly, the outer measurements (100mm x 50mm) are achieved within 0.1mm precision, however the inner diameters of the holes are consistently too small, sometimes up to 2 mm! I'm slicing with Cura 4.1. Hole Diameters are: Upper row: 2mm, 4mm, 6mm, 8mm, 10mm Lower row: 12mm, 14mm, 16mm, 18mm, 20mm Outer Dimensions are 100mm x 50mm x 5mm Print Settings Printer: JGAurora A5 Rafts: No Supports: No Resolution: 0.3mm Infill: Any Filament: Amazon Basic PLA Black Category: 3D Printing Tests
