IKEA SKADIS & WALL MOUNT

prusaprinters

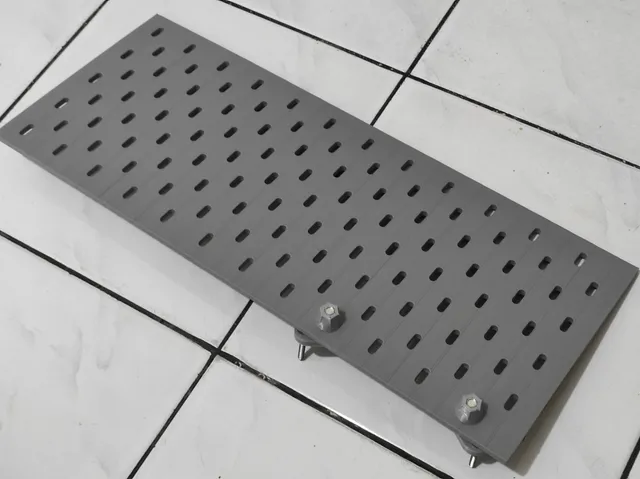

Fully 3D Printable IKEA SKADIS pegboardNow you can make your own custom IKEA skadis at home. I prepared many size to suit most printers, including belt printers.You will need40mm S8 wall plug40mm S8 screwM4 NutsM4x25mm hexagon BoltsGuide (see images):Wall mountTap the M4 nut into the back of the wall mount with a hammerusing another M4 bolt to pull the M4 nut until tightLocking PinThread the M4xx25mm bolt into the pin until it sits on top of the pinTap the bolt head with a hammer, or whack it to the ground really hard to secure it in placePrinting Suggestions I recommend printing with 3 or more shell count, and a high infill if you want to hang heavy objects. Minimal support required on the wall mount prints.
