Ikea dishwasher hinge

prusaprinters

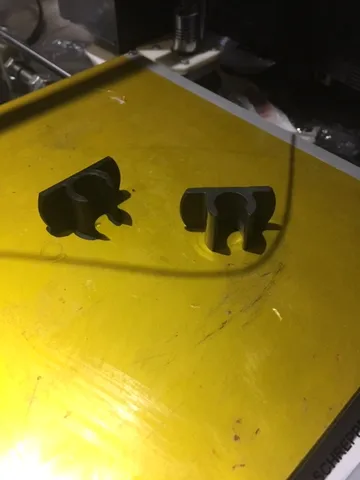

This replaces a broken Ikea dishwasher hinge. The model is also paremetric so you can have a different offset so that your dishwasher door is perfectly vertical. Print instructionsHere's the openscad source code so you can generate your own with a perfect offset: $fn=150+0; // offset 0 is like the original part. you can offset for instance 2cm by entering 20 here: offset=0; //0 is like original. 20 means 2 cm is like we have now on our door ;) union(){ rotate([90,0,0]) translate([0,9.5,0]) union(){ difference(){ cylinder(r=18.5, h=2.9); translate([-19,9.5,-0.5]) cube([38,20,4]); translate([-19,-29.5,-0.5]) cube([38,20,4]); } translate([0,0,0+offset]) difference(){ translate([0,9.5,9]) rotate([90,0,0]) cylinder(d=18,h=19); translate([0,10,9]) rotate([90,0,0]) cylinder(d=12,h=20); translate([-5.1,-11,10]) cube([10.2, 21, 20]); } difference(){ translate([-8.7,-9.5,0]) cube([17.5,19,8+offset]); translate([0,10,9+offset]) rotate([90,0,0]) cylinder(d=12,h=20); } } //add stronger base difference(){ translate([0,-6,9.5])rotate([270,0,0])cylinder( r1=8, r2=12, h=4); translate([-18,-5, 19])cube([35,5,8]); translate([-18,-5,-8])cube([35,5,8]); translate([0,-9-offset,0]) rotate([0,0,0]) cylinder(d=12,h=20); } }
