Icecubemachine, Eiswürfelmaschine für Camping (EINWÜRFEL)

prusaprinters

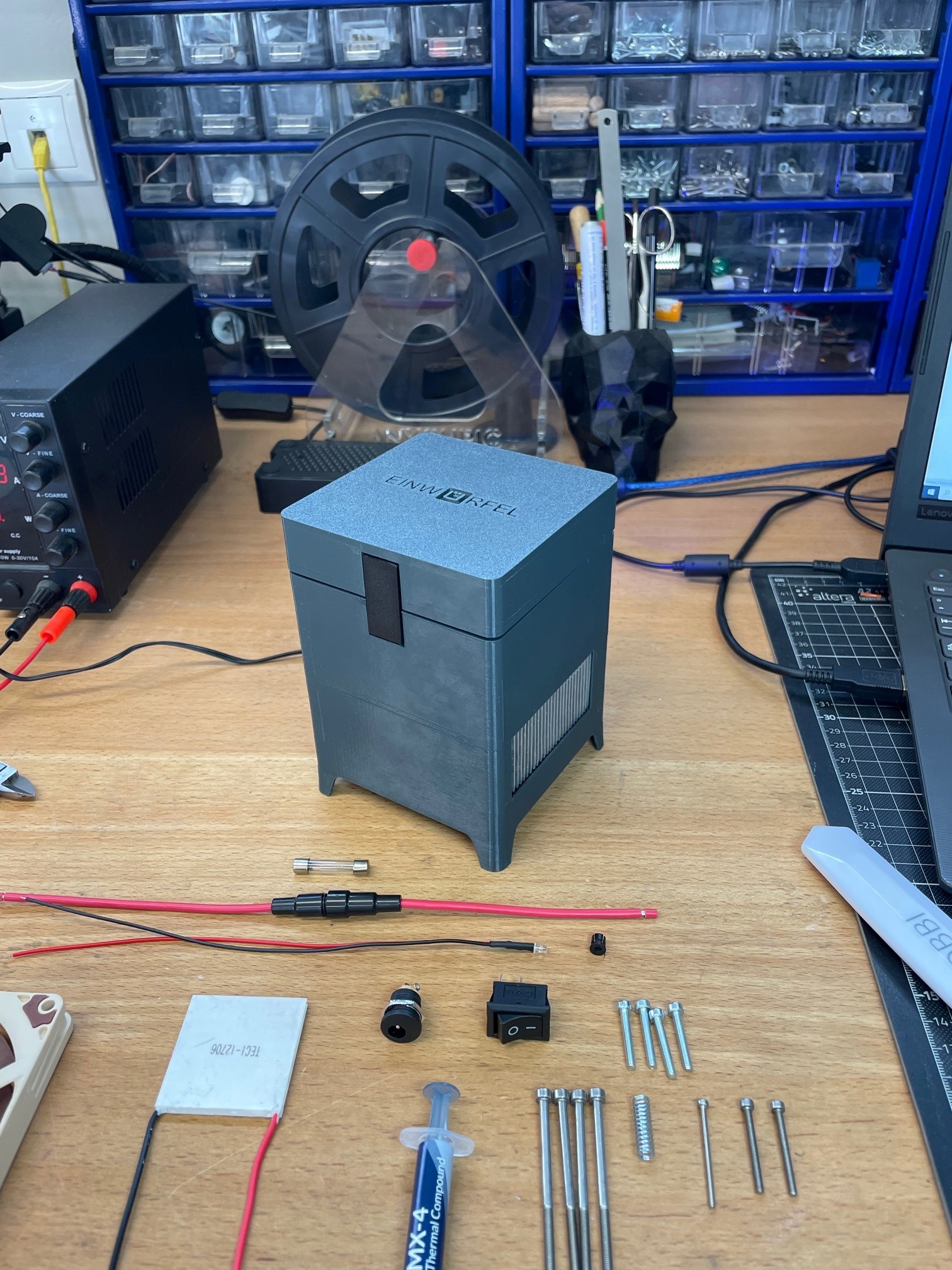

<p>Make an icecube with the power of a peltier element. Easy to print ice machine. It can only produce one icecube. Approx 1 hour per cube. You can use it for camping. Connect it with the 12V Carplug. (12V, 5A, 60W) Most of the parts are printable. The other parts can be purchased as standard components. Except the container for the cube. **</p><p>Mainparts: Cooling Fan, Aluminium heat sink, Peltierelement, some printed Parts, Aluminiumcontainer</p><p>** At the moment the Container is a special part milled from aluminium. Maybe there are suggestions from the community for an easy available standard component. Please let me know.</p><p>&nbsp;</p><p>Partlist:</p><p>Fan: 92x15mm, 12V</p><p>Peltierelement 40x40x3,5mm, 12V</p><p>Aluminiumheatsink: 100x69x36mm (not on the Foto, you have to cut it on 92mm)</p><p>Thermal Compound</p><p>Fuseholder for 30x6mm Glasfuse</p><p>Fuse: 10A</p><p>Led 3mm with 4mm Holder</p><p>DC-Connector: DC5521 (Dm 12mm)</p><p>Switch: On/Off (20x12mm)</p><p>Spring: 17x5mm</p><p>Screw:</p><p>M3 x 50mm</p><p>M3 x 20mm</p><p>M2,5 x 25mm</p><p>M2 x 30mm</p><p>Some foam for insulation</p><p>&nbsp;</p><p>The f3d-files are included so change and remake it. Please Print it and make it. If you have some ideas or questions please let me know.</p><p>&nbsp;</p>
