Huxley RepRap Electronics Enclosure

prusaprinters

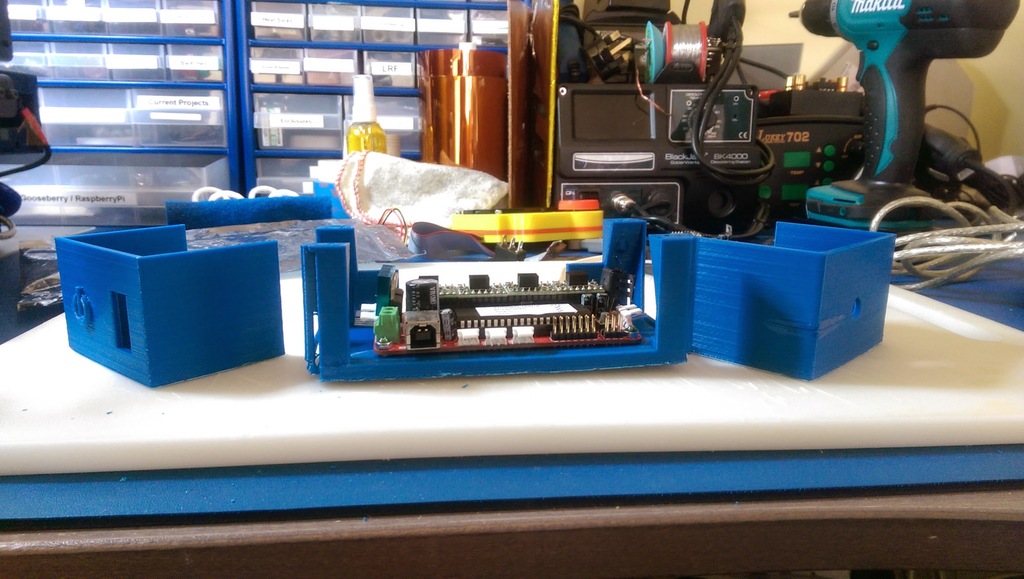

<p>Box for the Sanguinololu MCU board, with additional boxes for power input, power switch and lids.</p> <h3>Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Printrbot</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>Simple Black</p></div> <p><strong>Rafts:</strong></p> <p>Doesn't Matter</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>Yes</p></div> <p><strong>Resolution:</strong></p> <p>0.2mm</p> <p class="detail-setting infill"><strong>Infill: </strong> <div><p>15%</p></div> <p><strong>Notes:</strong></p> <p>I printed the parts in ABS and used Acetone to weld them together.</p> <p>There is a bracket which is designed to mount onto the chassis of the Huxley, and the boxes clip onto it - if your wiring is modular, this means that you can remove/mount the electronics quickly when moving the printer.</p> <p>If the mount is to be used, print off the feet and weld them onto the bottom of the boxes in strategic positions so that the boxes aren't hanging off the bracket.</p> </p></p></p> Category: 3D Printer Accessories
