Hue Devere / Xamento ceiling screw adapter
prusaprinters

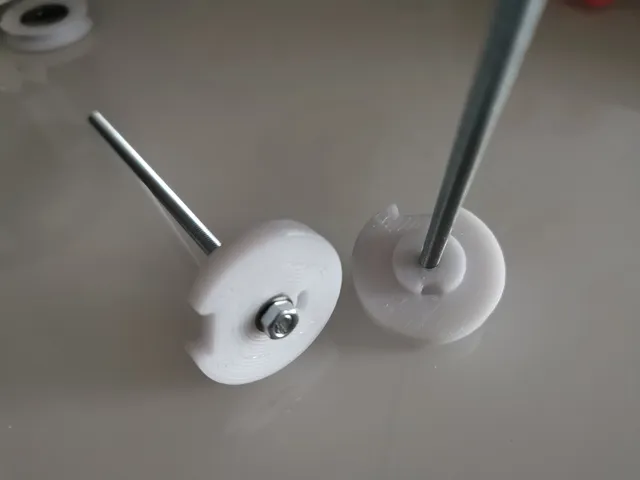

Mount Philips Hue Devere and Xamento lamps to the ceiling without drilling!Modern apartments use ceiling junction boxes like this one: https://www.kaiser-elektro.de/en_DE/products/electrical-installation/concrete-constructions-on-site-mixed-concrete/ceiling-boxes-and-accessories/339/large-ceiling-socket-115?number=1227-50&c=155/These have an M5 metal nut in the center which is designed to hold hooks for ceiling lamps.I used an M5 threaded rod (I needed ~135mm), washer and nut together with this 3d printed piece to mount four Philips Hue lamps to the ceiling without having to drill any holes.I used the 2022 Phlips Hue Devere and Xamento lamps, which have a new mounting plate. See more details here: https://hueblog.de/2021/12/17/philips-hue-xamento-die-erste-bunte-deckenleuchte-fuers-badezimmer/CAD source: https://cad.onshape.com/documents/8b2a4fca198c0db258cb490f/w/7c77d8294f8a371872e903c0/e/9cf8b7c247cd54eb0cf581f7?renderMode=0&uiState=62c72b3773d10a3737e8527e
