Housing grommet with 60mm fan for 2 inch / 50mm hose (Ikea-Lack)
prusaprinters

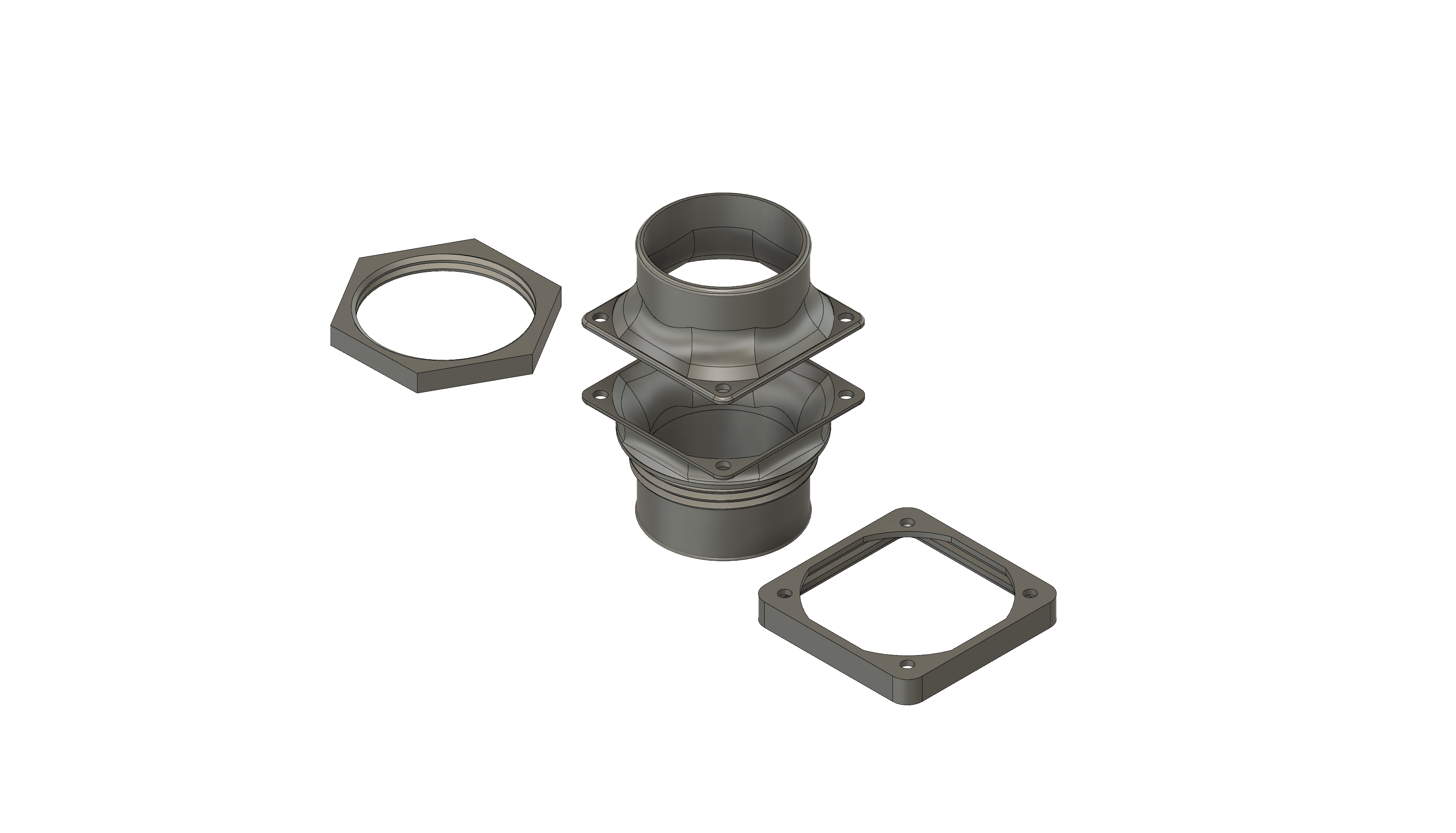

<p>Housing bushing for Ikea-Lack enclosure with 3mm acrylic glass panes. A 60mm fan for better Raspberry Pi and Einsy ventilation can be installed. </p><p>Helps to extract odors from the enclosure and remove them using an optional 50mm suction hose. </p><p>See <a href="https://www.prusaprinters.org/de/prints/138790-prusa-mk3s-einsy-raspberry-pi-4b3b-enclosure-with-">https://www.prusaprinters.org/de/prints/138790-prusa-mk3s-einsy-raspberry-pi-4b3b-enclosure-with-</a></p><h3><strong>Instructions:</strong></h3><ul><li>use a 55 to 56 mm hole saw</li><li>60mm fan</li><li>optional: 50mm / 2inch hose </li></ul><h3><strong>What you need:</strong></h3><ul><li>optional 60mm fan</li><li>optional 50mm / 2 inch suction hose for exhaust air</li></ul><h3><strong>Print instructions</strong></h3><ul><li>Use PETG or ASA</li><li>0.2mm Layer </li><li>no supports needed</li><li>6mm Brim for fan-part (especially with ASA)</li></ul>
