Housing 50x70

Housing 50x70

grabcad

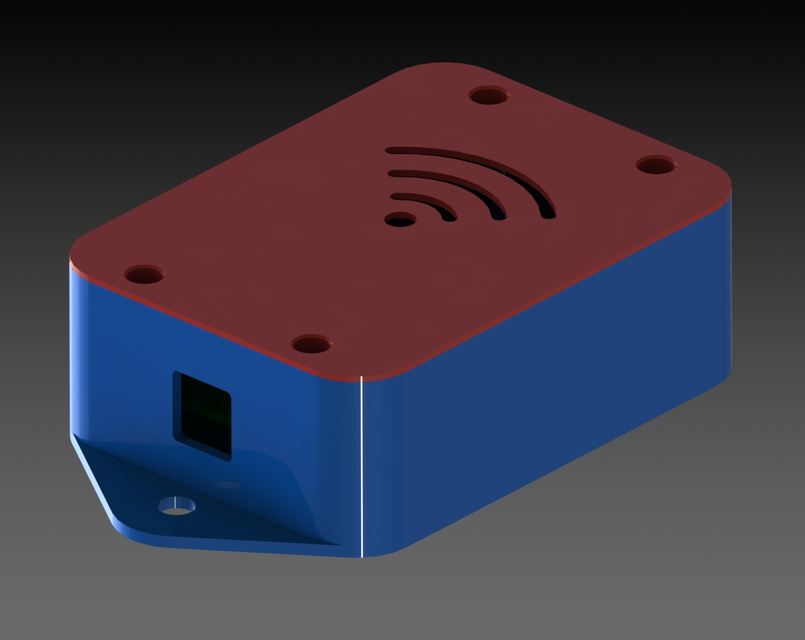

Small project box for a 50x70 pcb proto board.Mounting holes are 4inches apart.Overall height:31mmOutside box dimensions:90x65mmI got the proto board from amazon in a kit.They can be acquired individually as well.Vents cut in top in shape of wi-fi symbol.The project here is using an ESP32 Dev Kit with a couple of small relays. Cutouts at the ends allow for access to usb port and any wiring.BoM as shown1x Lid1x Housing4x M3 x 8 Hex Socket Head Cap Screw4x M2 x 5 Round Head Screw

Download Model from grabcad

With this file you will be able to print Housing 50x70 with your 3D printer. Click on the button and save the file on your computer to work, edit or customize your design. You can also find more 3D designs for printers on Housing 50x70.
