Housig for SO-45 Analog meter(s) - din rail mountable
prusaprinters

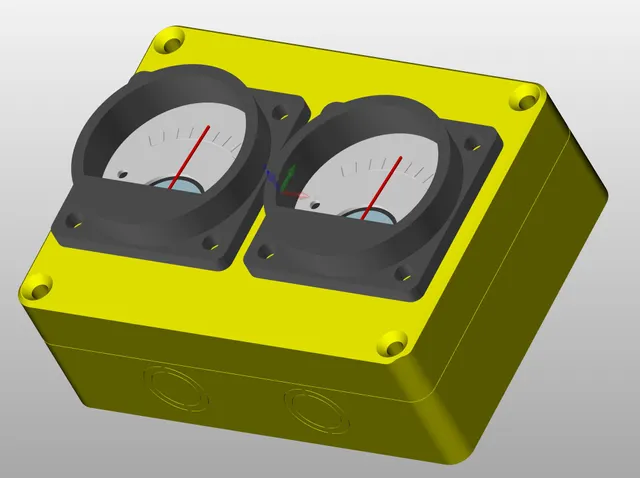

Housing for analog voltmeter/ammeter SO-45 Size is made to fit inside typical electrical box - like DIN circuit breaker. Meter is not sticking out higher than other circuit breakers, so dont get too easly damagedBUT - when you want meter in higher level, like front of circuit breakers - there is 12mm distance plate here, Two size:- for one meter (occupy 3S place in din-rail, like 3 circuit breakers)- for two meters (occupy 5S place in din-rail, like 5 circuit breakers)both is available in two versions:- with big rectangular holes for cables (useful for din-rail mount inside some machinery) - with round places (to pry-push-open) for cable gland, size PG7 (12mm) or PG9 (16mm hole)Mouting - you can use heatinserts (and M3x20 screws), or simple M4 screws. Box can be fixed to something, and can be mounted on DIN (din35) rail, with attached din-bracket (this is not my project, this is from https://www.printables.com/pl/model/420009-din-rail-bracket-heat-insert-version-525mm-625mm/files )
