HO Stelcon / industrial plate

prusaprinters

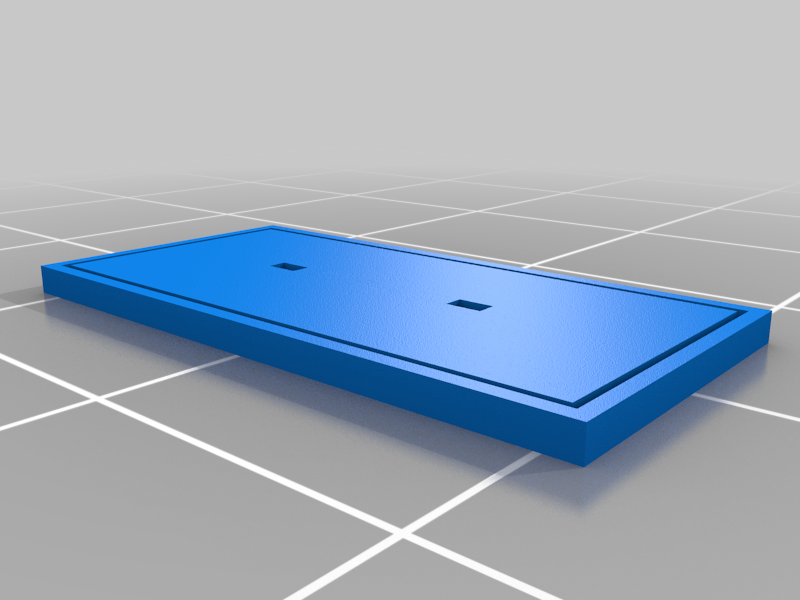

<p>H0 Scaled 'Stelcon plate', also known as industrial or concrete plates. It's a common and relative cheap way to pave larger areas of industrial or agricultural areas.</p> <p>These plates are made out of concrete, with a metal frame on the outside. In the middle two holes are present, used for laying the plates with a crane hook.</p> <p>I've created two designs. The design that's printed in one piece is tested with a FDM printer. The other design, that allows for the outer metal frame to be painted separately, isn't tested and could properly only be printed with a resin-printer.</p> <h3> Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Prusa</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>I3 MK3S</p></div>**Rafts:** Doesn't Matter <p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div>**Resolution:** 0.1 <p class="detail-setting infill"><strong>Infill: </strong> <div><p>15% Gyroid</p></div> **Filament:** [ PRUSAment PLA ](http://www.amazon.com/s?url=search-alias&amp;field-keywords=PRUSAment+PLA&amp;tag=thingiverse09-20) Silver Post-Printing ============= <p class="detail-caption"><strong>Post-processing the base of the two-pieces design: painted with an airbrush: base layer of thinned Vallejo Grey Primer, followed by not-thinned Vallejo Black Primer that's sprayed very very lightly.</strong></p> How I Designed This =================== <p class="detail-image"><img src="https://.s3.amazonaws.com/?AWSAccessKeyId=AKIAJ4LU5KWCMM7WB7YA&amp;Expires=1632312853&amp;Signature=JuKgZiqb5Pa7wGLDthGG%2B%2BV2Rzc%3D"/></p> <p class="detail-image"><img src="https://.s3.amazonaws.com/?AWSAccessKeyId=AKIAJ4LU5KWCMM7WB7YA&amp;Expires=1632312854&amp;Signature=3RbezCiSZA2Jk4q8nJ8dL4Ap8dE%3D"/></p> <p class="detail-image"><img src="https://.s3.amazonaws.com/?AWSAccessKeyId=AKIAJ4LU5KWCMM7WB7YA&amp;Expires=1632312854&amp;Signature=3RbezCiSZA2Jk4q8nJ8dL4Ap8dE%3D"/></p> <p class="detail-image"><img src="https://.s3.amazonaws.com/?AWSAccessKeyId=AKIAJ4LU5KWCMM7WB7YA&amp;Expires=1632312855&amp;Signature=llkv9vUgDf9SACVxP6fXdlBgKKg%3D"/></p> <p class="detail-image"><img src="https://.s3.amazonaws.com/?AWSAccessKeyId=AKIAJ4LU5KWCMM7WB7YA&amp;Expires=1632312855&amp;Signature=llkv9vUgDf9SACVxP6fXdlBgKKg%3D"/></p></p></p></p> Category: Hobby
