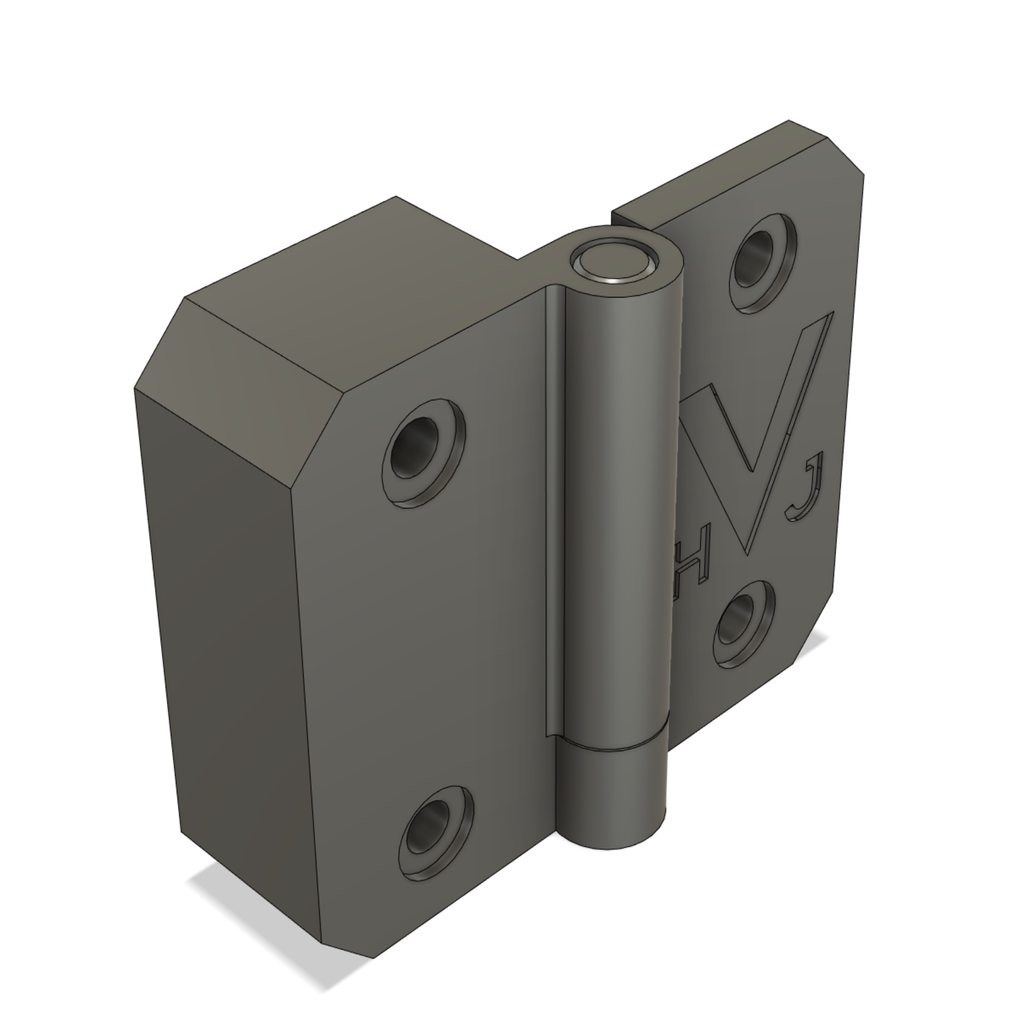

HJV Hinge 13mm

prusaprinters

<p>These hinges are made for acrylic door. I designed parts for IKEA Lack enclosure and it needed hinges, where doors are 13mm depth from feet surface.</p> <p>Measurements:</p> <p>Height: 50mm</p> <p>Width: 60mm</p> <p>Holes: 4,5mm</p> <p>Countersink: 8mm</p> <p>Female part depth from surface: 13mm.</p> <p>NOTE: Because IKEA Lack feets are piece of****, use glue with screws to fastening.</p> <h3>Print Settings</h3> <p><strong>Printer Brand:</strong></p> <p>Creality</p> <p class="detail-setting printer"><strong>Printer: </strong> <div><p>CR10S PRO</p></div> <p><strong>Rafts:</strong></p> <p>No</p> <p class="detail-setting supports"><strong>Supports: </strong> <div><p>No</p></div> <p><strong>Resolution:</strong></p> <p>0,20mm</p> <p class="detail-setting infill"><strong>Infill: </strong> <div><p>15-20%</p></div> <p><strong>Filament:</strong> RealFilament PLA / PETG <br/> <p class="detail-setting notes"><strong>Notes: </strong></p> </p><div><p>I recommend to print with 3 perimeters.</p></div> </p></p></p> Category: Organization
