Hitch Pivot

grabcad

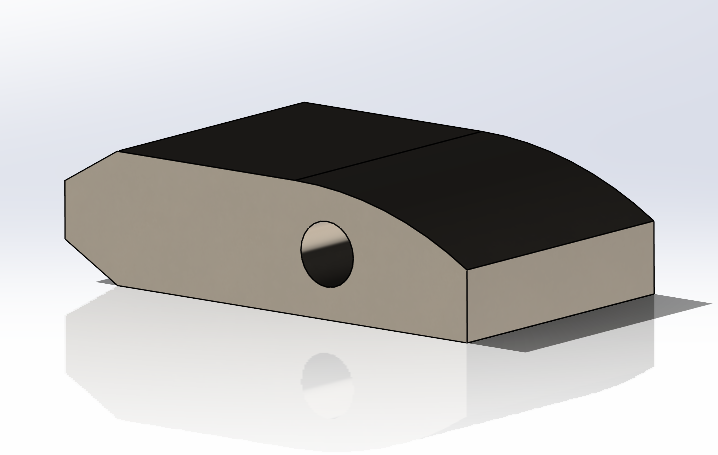

Mass = 48008.06 grams1. Make a sketch on a pane with a 45D circle on the origin. make a vertical like 50mm tall 120mm away from the circle from that line make a horizontal line 300m toward the circle from that line make a line going slightly up 150degress angle making it 45 mm long .Another line from that going up by 40mm and a mirrored angle line with a longer horizontal line coming from it. Connect the two points with an arc R280. extrude by 200m.Mass = 23495.15 grams2. make a sketch on top with small rectangles at the sides 25x75 and a big one in the middle 125x150. Cut through the whole thing.Mass = 18262.51 grams3. Convert entities of the sides by 2mm and cut two time once for the short side and another for the deeper side.
