hexagonal bits holder 19 + 37
prusaprinters

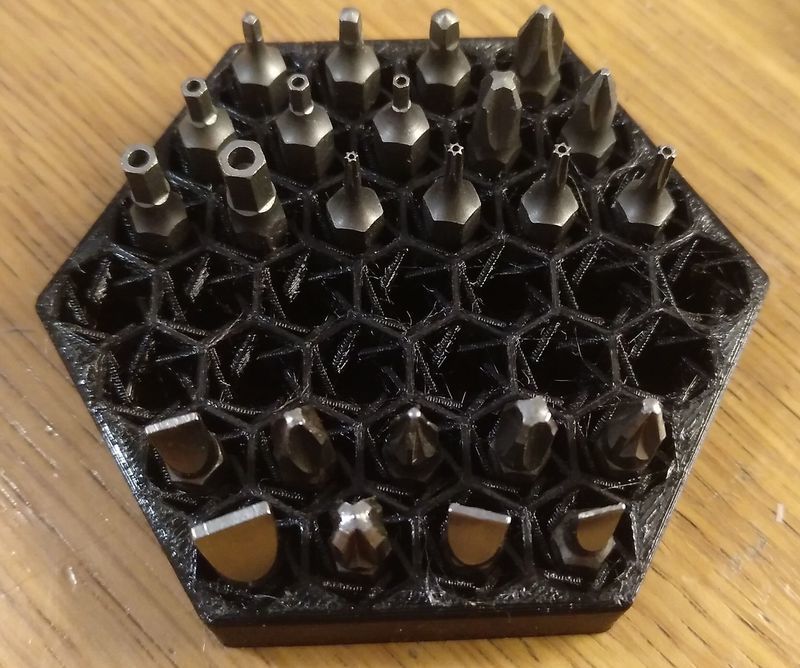

<h3>Print instructions</h3><h3>Category: Tool Holders & Boxes Summary</h3><p>Another bits holder. I thought a while how to design holes for the bits, not too loose, so that the bits will stay safely in the plate without the need of a cover, but also not too strong, so they can be picked out easily with the finger tips. So I came up to the idea of designing little spring like elements. That really works perfectly!</p><p>There are two sizes: A smaller one for up to 19 bits and a larger one for up to 37 bits.</p><p>See also my <a href="https://www.prusaprinters.org/de/prints/51395-hexagonal-nozzle-sheath-19-for-m6-nozzles-eg-e3d-v">hex nozzle sheath 19</a> with the same gripping mechanism</p><p>PS: I only recognized afterwards that mark2 had quite the same idea for these kind of 'spring holes'. Even if my design is not a classic remix of this former design, I don't want to miss to mention it: <a href="https://www.thingiverse.com/thing:3424118">https://www.thingiverse.com/thing:3424118</a></p><h3>Print Settings</h3><p><strong>Printer Brand:</strong></p><p>Prusa</p><p> </p><p><strong>Printer: </strong></p><p>I3 MK3S</p><p></div><strong>Rafts:</strong></p><p> </p><p>No</p><p> </p><p><strong>Supports: </strong></p><p>No</p><p></div><strong>Resolution:</strong></p><p> </p><p>0.2</p><p> </p><p><strong>Infill: </strong></p><p>no</p><p></div><br><strong>Filament:</strong><br>PETG</p><p> </p><p> </p><p> </p><p> </p>
