Hero Me Gantry Clip Creality Style Carriage Remix

prusaprinters

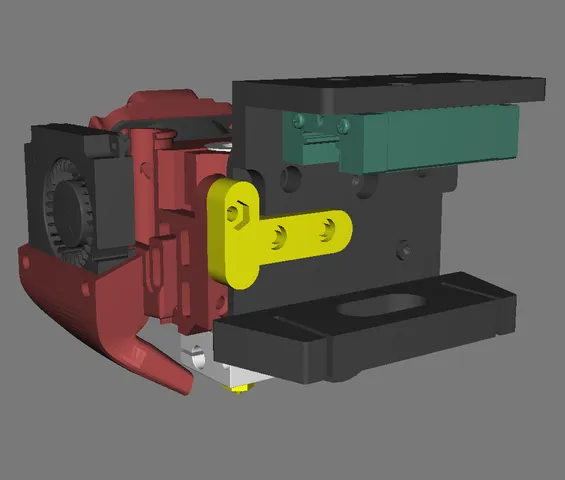

This is a remix of https://www.thingiverse.com/thing:4780749 for the Hero Me. It's designed for a Creality x carriage, but the first version should fit most printers. On my clone printer, a linear rail is top-mounted and I have ensured there is clearance for these clips. I am using an E3D V6 hot end so the hot end mount holes on the carriage are not used. You will need to check the clearance for your particular printer to ensure these will work. The original clip is fiddly and very small. With this clip installed the gantry adapter is mounted rock solid and won't go anywhere!There are 3 version files:The first version is the gantry clip for an M3 nut, but it has been lengthened to make it stronger.The second version is also lengthened but adds a wing to the clip. It has two screw holes you can use to put into the holes where the hot end mounts. This can be used if you are not using these holes. Again this uses an M3 nut on the main part of the clip.The third version is almost the same as the second one. It changes the M3 nut to a threaded insert. It is also a little thicker to accommodate the threaded insert. Use an M3 threaded insert that is less than 5mm in height. Some post cleanout of the area around the threaded insert will most likely be needed.
