Heavy duty sliding door guides

prusaprinters

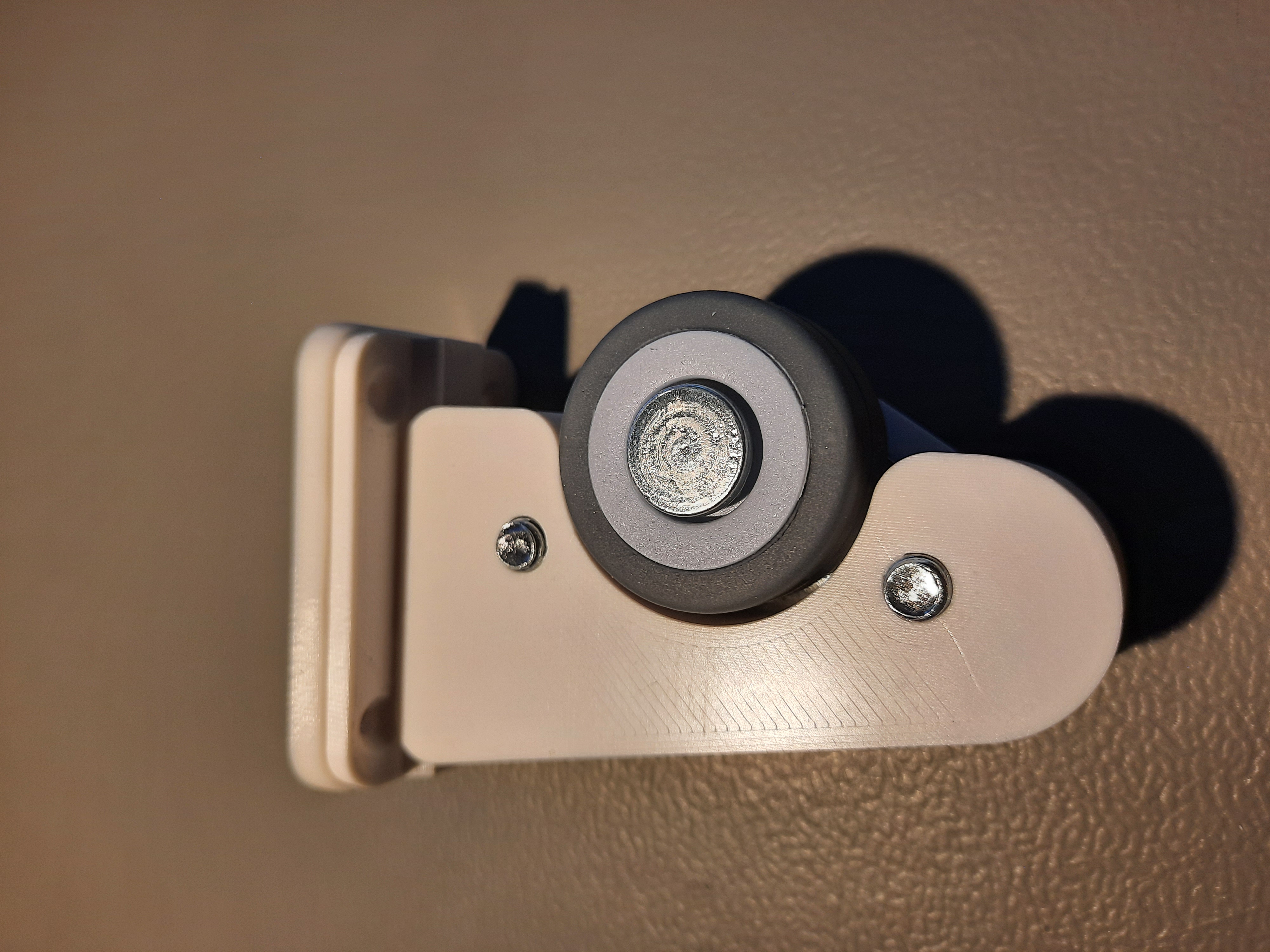

<p>This is an original designed heavy duty sliding door wheel guide. Both left right guides are include. Suitable for medium to large and/or heavy duty sliding doors.</p> <p>Uses a mounting flange with 4x screws holes and anti-slip sole for optimal door frame fixation. Once the flange is mounted the wheel body can slide across 20mm to adjust the position towards the door panel.</p> <p>Required extra materials:</p> <p>2x 791431 parket wheel (Dorner + Helmer Gmbh)<br/> <a href="https://www.amazon.nl/D%C3%B6rner-helmer-parket-zijrol-TPE-wiel-791431/dp/B00O9X9UKK">https://www.amazon.nl/D%C3%B6rner-helmer-parket-zijrol-TPE-wiel-791431/dp/B00O9X9UKK</a><br/> 3x M6 20mm screw<br/> <a href="https://www.123-3d.nl/123-3D-Metaalschroef-bolkop-M6x20-verzinkt-50-stuks-i2005-t9735.html">https://www.123-3d.nl/123-3D-Metaalschroef-bolkop-M6x20-verzinkt-50-stuks-i2005-t9735.html</a><br/> 3x M6 nuts<br/> <a href="https://www.123-3d.nl/123-3D-Zeskantmoer-verzinkt-M6-50-stuks-i142-t3042.html">https://www.123-3d.nl/123-3D-Zeskantmoer-verzinkt-M6-50-stuks-i142-t3042.html</a></p> <p>If you like it, leave a comment it's only fair on your behalf.</p> <h3>Print instructions</h3><p>Printed using Prusament PETG Signal White for wheel body parts and FilaFlex 40 Natural white filament for the rubber flange cap.</p> <p>Important note: Both M6 nuts must be embedded into the wheel body, by pausing the printing process one step before closing the M6 cavity.</p> <p>Both 3MF and STL files have been included.</p> <p>Happy printing!</p>
