Hario V60 Drip Scale Hook for Ikea Skadis

prusaprinters

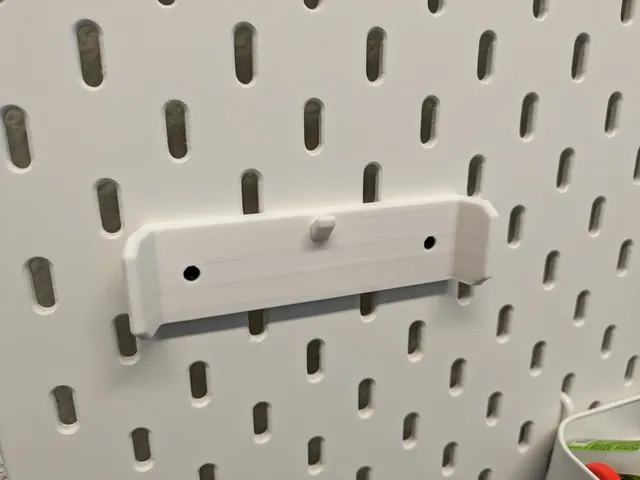

A bracket with hook to mount the Hario V60 Drip Scale on IKEA SKÅDIS pegboards. It has guide wings that guide the scale to the hook. Super easy to use. It uses Skadis T-Nuts for a very solid installation that doesn't rattle.Looking for a regular screw-mounted version? Check out the V60 Scale Wall Mount.Read more about the Skadis T-Nuts Mounting System and check out the Skadis T-Nuts Collection for more Skadis accessories that use T-Nuts.  BOMQtyDescriptionSourcing2M2.5 DIN934 Hex NutAliexpress2M2.5x16mm Socket Head Cap ScrewAliexpress Printed PartsQtyPart2T-Nut M2.5.stl1V60 Scale Skadis Mount.stl1V60 Scale Hook.stl PrintingPrint the parts in the original orientation. All STLs are pre-rotated for printing.Recommended setting for 0.4mm nozzle.Layer height: 0.2mmPerimeters: 3 or 4Infill: 20%Extrusion width: 0.4 - 0.45mmSolid layers: 4 top, 4 bottomYou might want to print the T-Nuts separately and a little slower as they are pretty small. Assembly & InstallationStep 1: Glue HookApply some superglue to the cavity for the hook in the mount. Then push the hook through through the hole in the mount. Let the glue cure.Step 2: Prepare T-NutsInsert the hex nuts into the bottom of the T-Nuts. The nuts should fit tightly and not fall out. Use superglue if the fit is loose and be careful to not get any glue onto the threads.Step 3: AssemblyPush the M2.5 screws through the part all the way and screw on the T-Nuts from the back until there is a gap of about 2mm between the T-Nut and the mount.Step 4: InstallationAlign the T-Nuts in the vertical orientation and push the whole assembly into the desired holes on the pegboard.While maintaining some pressure on the screw driver,  tighten the screws. The T-Nuts will orient themselves in the horizontal position.Step 5: UseAttach the scale using the hole on the back.
