Hadley Rocker Frame Mount Storage

prusaprinters

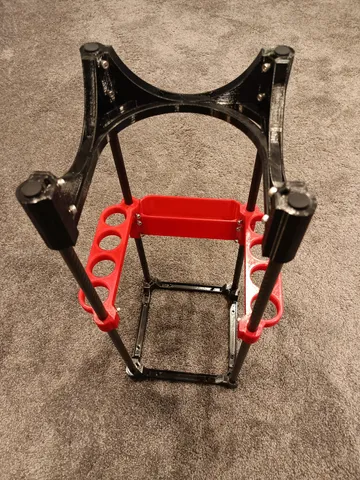

This is a remix of fortinmike's Dobsonian Mount Storage to fit the Hadley Telescope Rocker Frame with 12mm rods. I wanted to stiffen the frame and have storage on the frame.I used m4 x 12mm screws and m4 nuts to fasten it to the rods.2 of each for the eyepiece holder4 of each for the basket.The imperial models have been tested by the community. If you have any issues or questions, please let me know in the comments.Change logDec. 12, 2022, increased the imperial eyepiece rod holes from 12.5mm to 13.5mm (0.49" → 0.53"). I also re-uploaded the basket but it was already the new size (13.5mm; 0.53").Dec 13, 2022, increased imperial dimensions for nuts to allow for better fitment. Holes went from 3.5 mm x 9.9 mm to 3.8 mm x 10.5mm and a depth of 14 mm to 14.2mm. Added a chamfer to the bottom nut holes on the basket to allow for more “squish” on the build plate.Jan. 7, 2022, Added the FreeCAD metric files.If you want to support my work, please consider buying me a coffee!
