Gyroscope Beer / Soda Can Holder

prusaprinters

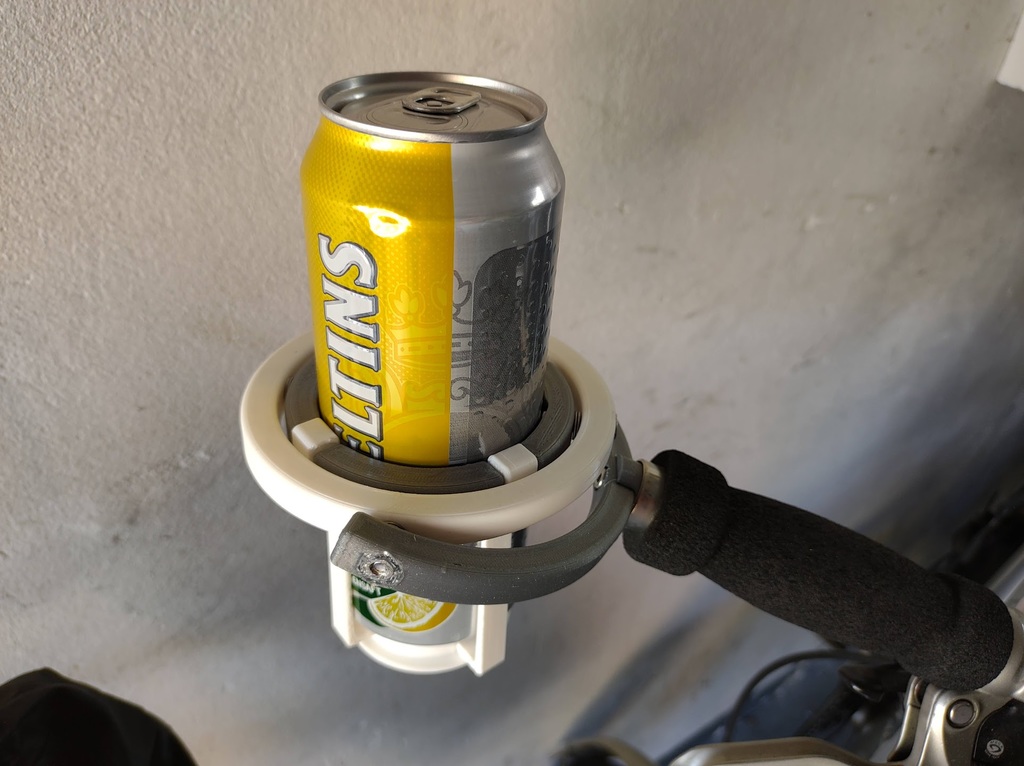

<p>I optimized the original for <strong>beer cans</strong> which have a diameter of <strong>67mm</strong>.</p><p><strong>I changed the nut size for the center holder to 7mm M4 nuts</strong> (the original used a bigger not so common nut size).</p><p>It still uses <strong>18mm</strong> <strong>M4 </strong>screws just like the original.</p><p>I did not manage to change the nut size of the outer ring, so I used hot glue to keep the nuts in place. I also recommend to use nyloc nuts for the outer ring.</p><p>I added a custom rod which lets me insert the holder into my bicycle handlebar (it has an inner diameter of <strong>19mm</strong>. I printed it with a stop so I can insert a 7mm M4 nut which will be embedded into the print as attachment point. Just use glue, if you do not know how to insert a nut while printing.<br>If you don't want to insert this into your handle bar go download the other attachment options from the original design, they will still fit on this version.</p><p>Consider this as a quick and dirty remix and not the the best. But it works and it holds my beer pretty well :)</p><p><strong>Update:</strong></p><ul><li>Added a longer holder version for 500 ml cans (not shown on the photos)</li><li>Added a new bottom holder base to fit cans even better</li></ul><h3>&nbsp;</h3><p><strong>Print Notes:</strong></p><p>The Silver parts are printed with <strong>PETG</strong>, especially the outer ring and support should be printed with a strong material. The white parts are printed with <strong>PLA</strong>.&nbsp;</p>
