GT2560 with MOSFET Housing

prusaprinters

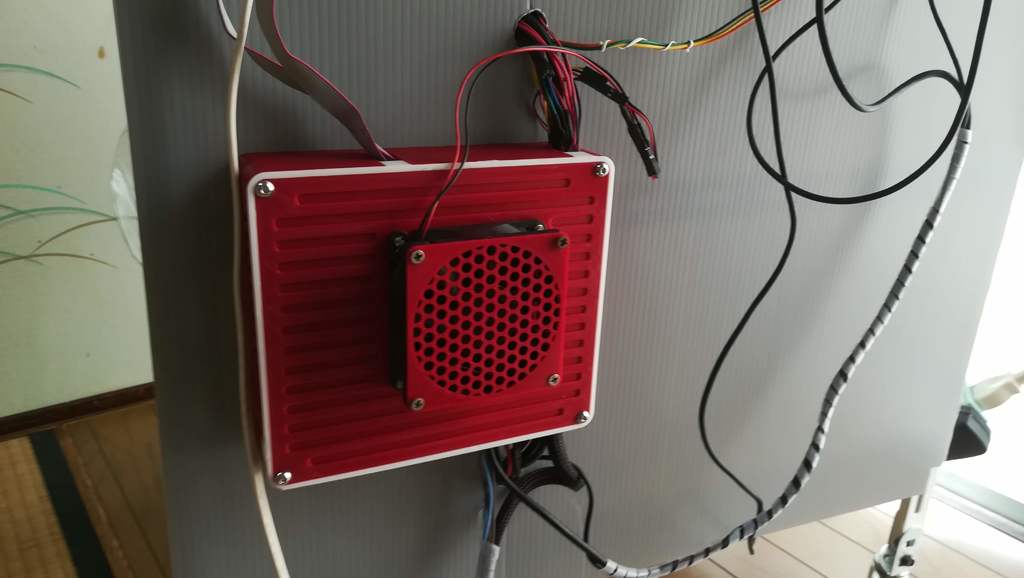

<p>This is my design for GT2560 and MOSFET housing.</p> <p>You can choose between an 80mm fan and a mall for the lid.</p> <p>M4 8mm x 4 is required to attach the lid.</p> <p>The board sizes of GT2560 and MOSFET vary,</p> <p>GT2560 board size I have = 93mm x 72mm</p> <p>MOSFET 52mm x 42mm</p> <ul> <li>The above is the center distance of the mounting screw.</li> </ul> <p>It is created in.</p> <ul> <li>Fan Grill Cover</li> </ul> <p><a href="https://www.thingiverse.com/thing:2802474">https://www.thingiverse.com/thing:2802474</a></p> <p>I pray that I can be of service to you.</p> <h3>Print Settings</h3> <p><strong>Printer:</strong></p> <p>Geeetech i3 Pro B</p> <p class="detail-setting rafts"><strong>Rafts: </strong> <div><p>No</p></div> <p><strong>Supports:</strong></p> <p>Yes</p> <p class="detail-setting resolution"><strong>Resolution: </strong> <div><p>0.2</p></div> <p><strong>Infill:</strong></p> <p>25%</p> <p><strong>Filament:</strong></p> no brand PLA <p>red and white</p> </p></p> Category: 3D Printer Parts
