Groove Mount Adapter for Titan Extruder

prusaprinters

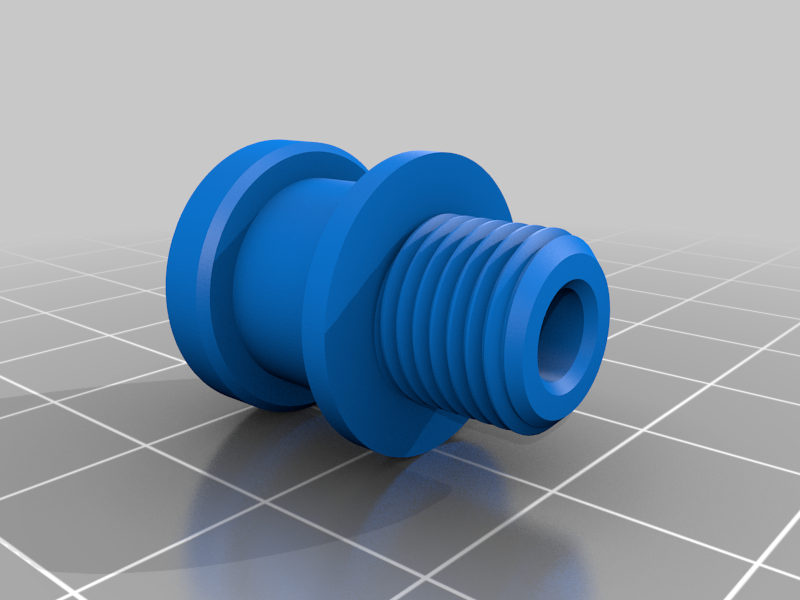

<p>This collection includes files for 4 different Groove Mount Adapters for the E3D Titan Extruder.</p><p>One that is threaded for M10 fittings, one that's threaded for M6 fittings, one that is not threaded for direct drive applications that need the clearnance, and one that has a threaded bit on the end for screwing into some clone E3D Heatsinks (Like that on the CR10 V2 and V3).</p><p>Print with at least 0.15mm layer height if not finer</p><p>I designed these models to be able to print them with minimal over hangs and no support material. Using support material will likely cause the adapters to no longer fit.</p><p>Also make sure your horizontal expantion is tuned in or the threads will not work. I fined -0.1mm to be enough for threads.</p><p>Print with like 3 or 4 walls and infill shouldn't matter<br>Print with the threaded end pointing up and it won't need supports</p><p>&nbsp;</p>
