gosund sp111 aka "Jisusu" aka "TedGem" SmartLife Wifi Plug Flashing Adapter

prusaprinters

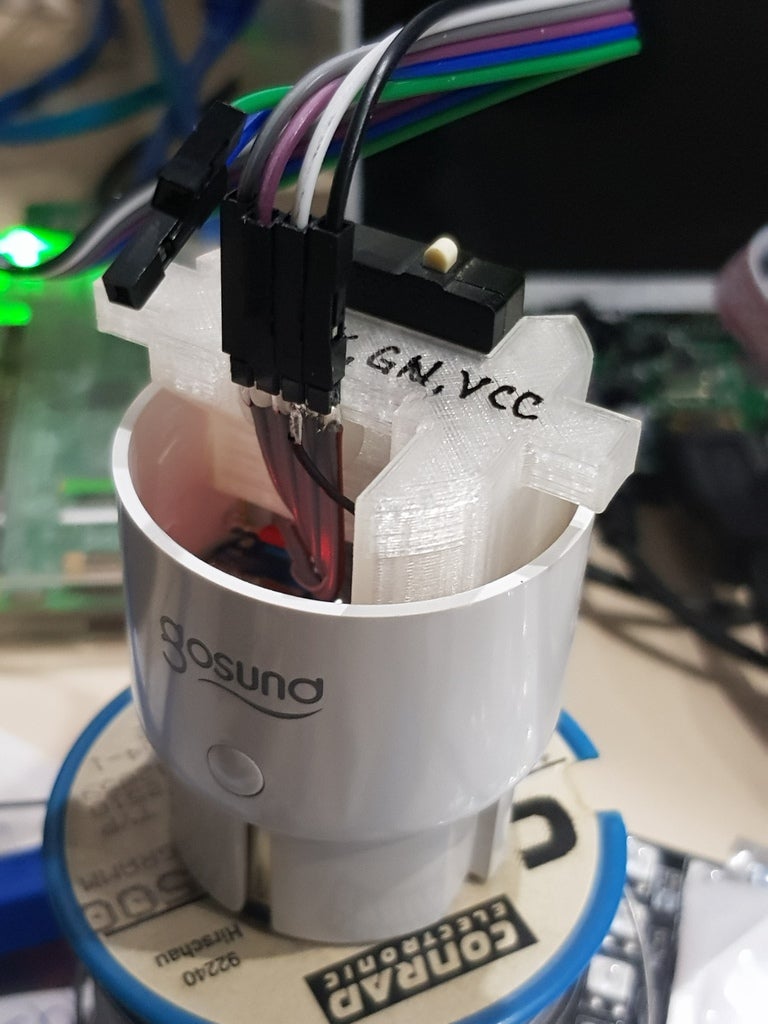

<p>I liked the general design of Rhazgular's Flashtool from Thingiverse but did not intend to integrate a complete FTDI assembly into it and use a pin header instead.</p><p>So I decided the original design was a bit too much for me and cut down the volume and printing time. I also added an old micro switch for easy flashing initialisation. Last but not least i widened the pogo pin holes a bit to make mounting the pins easier for me and cut away parts of the body where it could interfere with the WLan antenna.</p><p>I recommend soldering the pins to the wires before inserting them to prevent unwanted melting effects. When the pogo pins are aligned correctly, add a drop of CA on their base to fix them permanently The pin header and microswitch were attached with a glob of hot glue.</p><h3>&nbsp;</h3><h3>Print Settings</h3><p><br><strong>Rafts: </strong>No<br><strong>Supports: </strong>No<br><strong>Resolution: </strong>0.1mm<br><strong>Infill: </strong>15%<br><strong>Filament:</strong> filamentum PLA natural&nbsp;<br>&nbsp;</p><p><strong>Notes:&nbsp;</strong></p><p>I recommend taking the time to print in 0.1 and not too fast to get the small pogo pin holes printed precisely.</p><p>&nbsp;</p><p>&nbsp;</p><p>&nbsp;</p>
