GepRC Mark5 30.5x30.5mm cover

prusaprinters

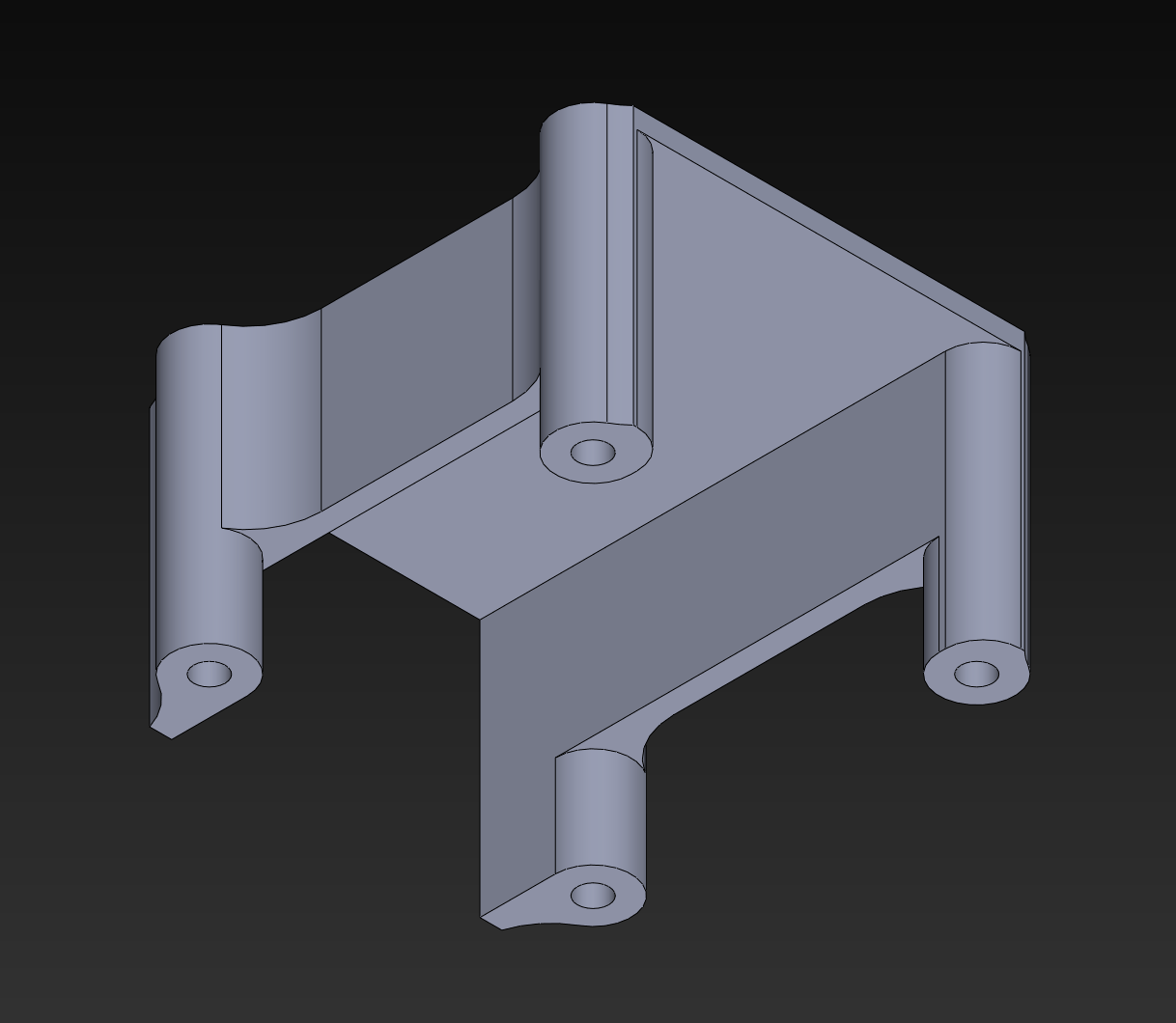

<p>A simple cover made to fit over a standard <strong>30.5x30.5mm</strong> hole pattern, which can be found on most 5" or above fpv quadcopters. It main role is to hide the analog vTX and receiver.</p><p>vTX should ideally go on the bottom for maximum airflow, and the receiver on the top of the mount, with various wires hidden in between for obtaining a clean build.</p><p>On my Mark5, I installed a Rush Tank Solo on the bottom, which has 20x20mm M2 mounting holes, and I taped my receiver to the top of the mount with double-sided tape, having hidden some wires in between them. (pictures coming later, after my parts arrive)</p><p>The height is 22mm overall, so it can fit in most quads besides this one. One sides extends out longer than the other, this is just to accomodate the Mark5 frame.</p><p>The holes on the bottom are 2.5mm in diameter and are designed to take M3 screws. They have to be forced in there the first time, to create the initial thread.</p><p>Printed with PETG in 0.1mm layer heigth, no supports.</p>
