GE Bracket Competition

GE Bracket Competition

grabcad

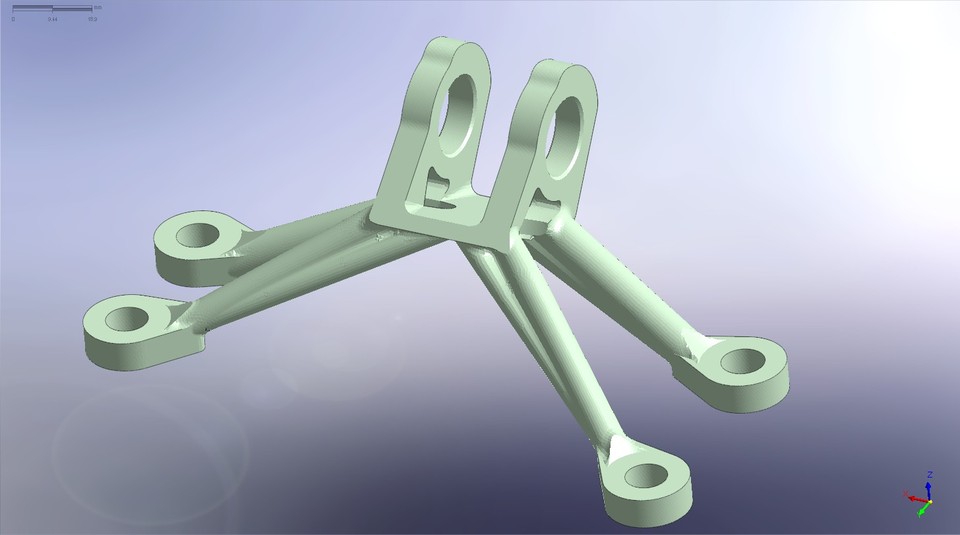

This design achieves an impressive 89.8% reduction by utilizing localized plastic deformation, which induces pre-stress in the initial usage. Subsequent unloading will result in local yield compression. The model's behavior is analyzed using material non-linearity (bi-linear model). Included files are a STEP file and Nastran Deck (*.nas & *.bdf formats) for further analysis.

Download Model from grabcad

With this file you will be able to print GE Bracket Competition with your 3D printer. Click on the button and save the file on your computer to work, edit or customize your design. You can also find more 3D designs for printers on GE Bracket Competition.
