Fysetc ERB Sturdy Bunny / ERCFv2 2020 Electronics Enclosure

prusaprinters

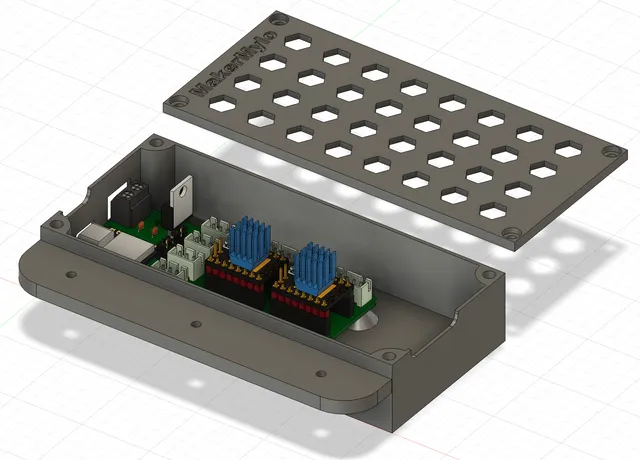

This is a small slightly oversized case that mounts on the bottom of the 2020 profile of the Sturdybunny / ERCF v2 below the filament blocks at the back.FeaturesAccurate USB-C & Power Pass through holes.Left and Right passthroughs at the top for feeding in wiring.Plenty of ventilation in the lid for air flow.Plenty of height to accomodate the ERB, possibly the Easy BRD too (Heatsinks dependant).Countersunk screw heads in the lid to allow flush fitting.2x Additional corner supports to prevent the board bending.Additional space within the enclosure for wiring bundles.Height sits perfectly to act as a foot for the ERCF v2 and make it sit stable against the surface (if mounted flat).BOM7x M3 Brass inserts7x M3x6mm Screws3x M3x16mm Screws + M3 T-NutsPrintingMain enclosure will need a small bit of support on the mounting tab.Lid will need to be printed upside down.
