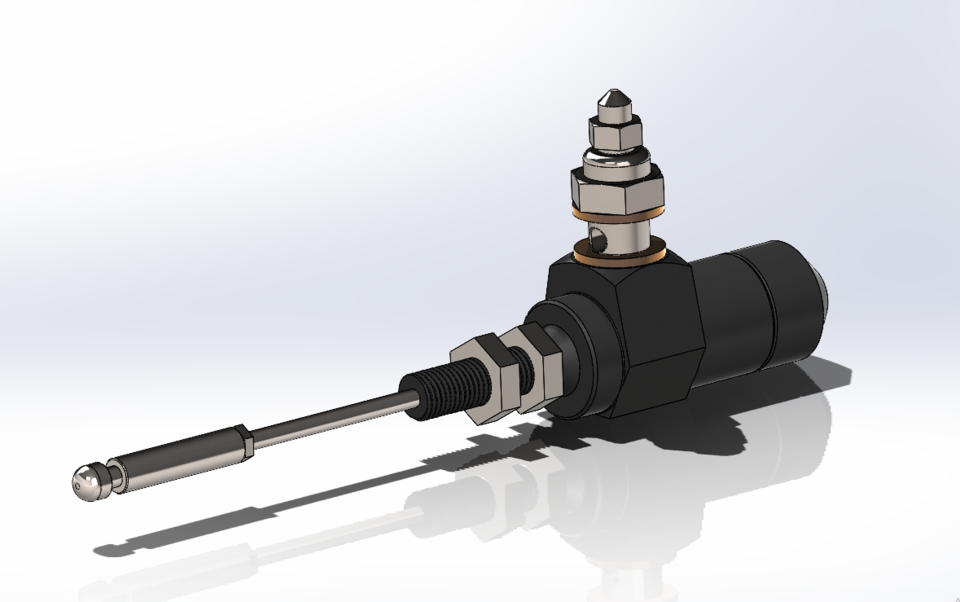

Frando clutch cylinder 12.70mm
grabcad
Accurate measurments from Frando Clutch cylinder (motorcycle clutch conversion from cable to hydraulic).Piston diameter 12.70mm.Piston stroke 20mm.Piston reach, end of m8 thread to centre of groove in piston, when extended (at rest on clutch arm) 65mm. This can be extended to 72mm by winding out the adjuster on the piston stem.Banjo bolt (m10x1.00) with bleed nipple (m6x1.00).Frame attachment thread m8x1.25 x 30mm long.Piston stem adjuster thread m3x0.50 x 14mm long.Major body diameter 20mm.Body length (exc threaded stem) 55mm
