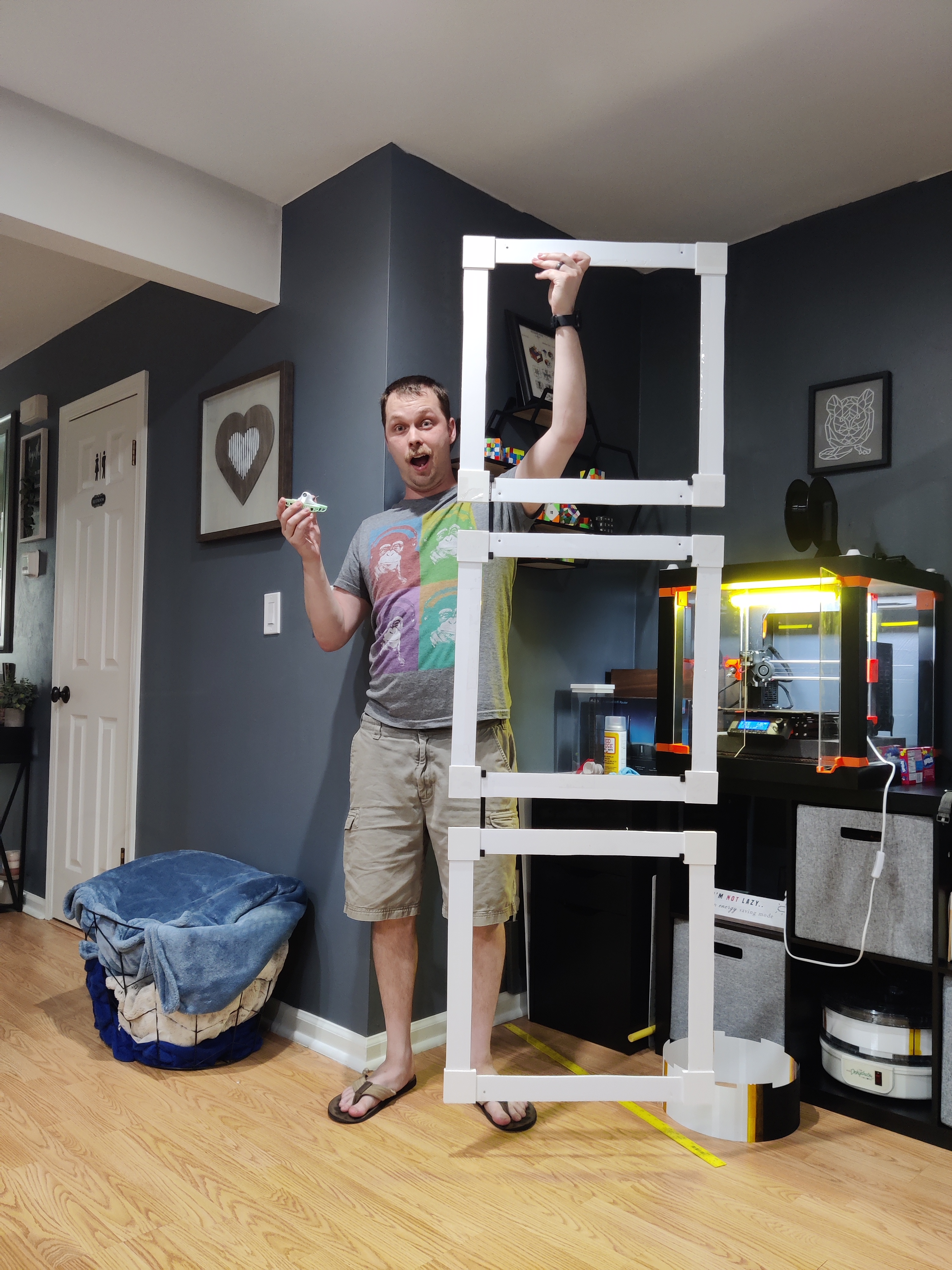

Foam Drone Gate Ladder (Approx 11$)
prusaprinters
<h3>A simple and inexpensive FPV Drone gate ladder!!!</h3><p> </p><h5>Materials: </h5><p>Foam Board (22x28) $1.62 - tinyurl.com/3duv9jch</p><p>Craft Glue (E6000 or similar) $3.18 - tinyurl.com/3duv9jch</p><p>Exacto Blade or another suitable utility knife</p><p>Filament (PLA suitable for indoor use, use PETG/ABS for outdoor gates)</p><h4>Parts</h4><p>2 Inch Cutting Jig - Use this to cut the foam board along the shortest edge to create 14 strips. This is enough material for 3 gates and 2 extra pieces for mistakes. </p><p>45 Degree Cutting Jig - Use this to cut the foam board at 45 degr45-degree angles for insertion into corner brackets. </p><p>Air Gate Corner Bracket - Print 8 per gate. </p><p>Wall Mount - Print two. </p><p>Gate Linking Bracket - 2 per individual gate</p><h4>Assembly</h4><p>Use high adhesive craft glue to align cut pieces at 45-degree angles and secure them within the corner brackets. </p><h4>Flight Video</h4><figure class="media"><oembed url="https://youtu.be/A97OA_RNxlw"></oembed></figure><p> </p>
