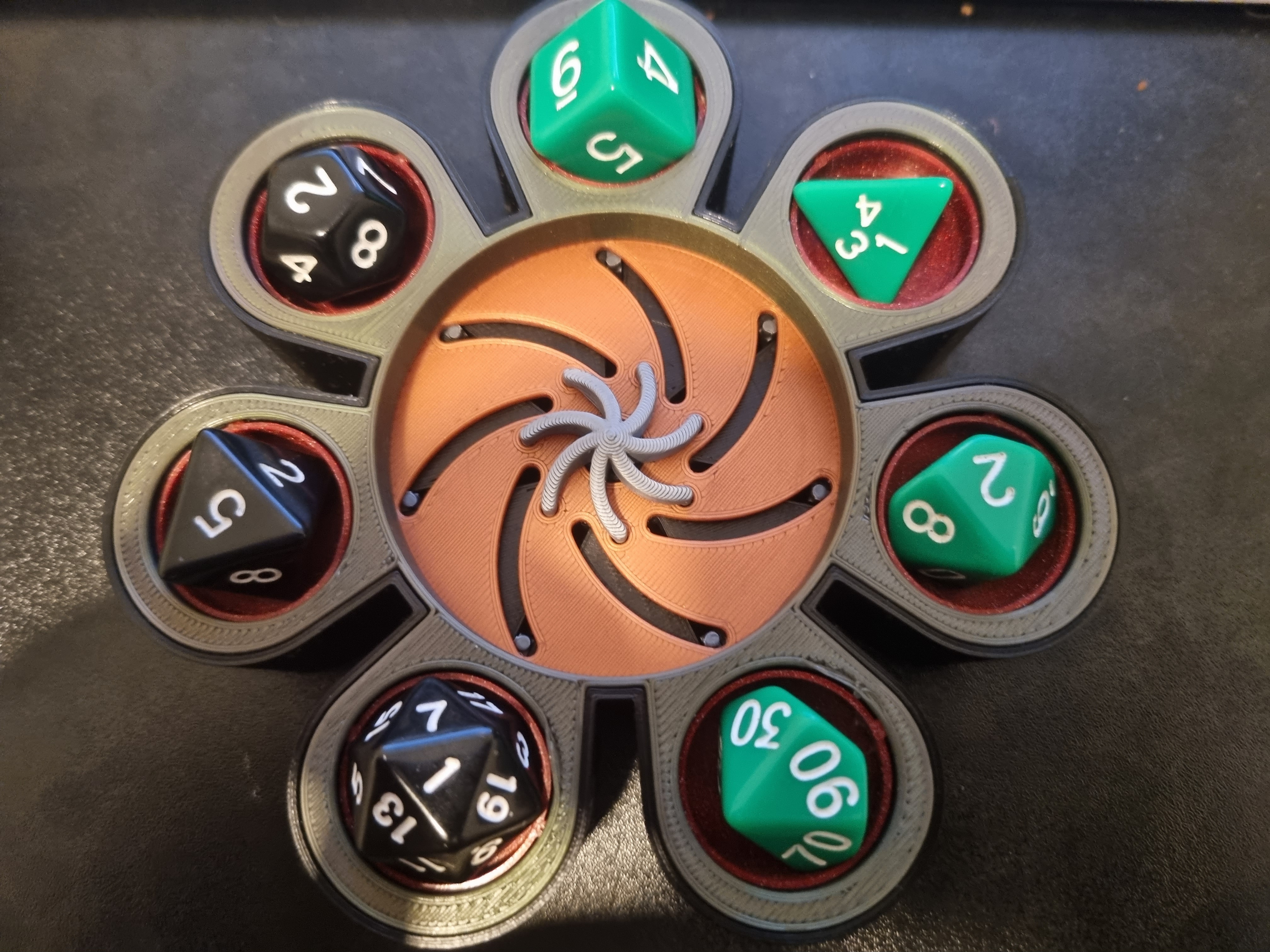

"Flower of Fate" - Mechanical dice case

prusaprinters

<p>The Flower Fate, contains 7 dice which determine the fate of many adventurers.<br><br><br><strong>&nbsp;Printing Instructions:</strong><br><br>For the most part i recommend pla, with a layer height of 0.2 mm, however some exceptions apply, these can be seen in file notes.<br><br>Print the parts as shown in picture (see file notes for amounts)<br><br>Step 0:<br>make sure each part looks right, cut of any brim left overs / elefant's foot.<br>This is especially important for the mechanical parts.<br>&nbsp;<img src="https://media.prusaprinters.org/media/prints/148791/rich_content/0323782b-2e69-4d20-8f0c-e1163f065bd9/20220311_165657-min.jpg#%7B%22uuid%22%3A%22d5002f52-7557-4699-968d-c49f23eaec14%22%2C%22w%22%3A4032%2C%22h%22%3A2461%7D"></p><p><br>Step 1:<br>Glue <strong>lift_wheel_knob </strong>pegs into round holes in the <strong>lift_wheel.</strong><br><img class="image_resized" style="width:66.65%;" src="https://media.prusaprinters.org/media/prints/148791/rich_content/78e9ec7c-8978-41e1-96b9-7d712e53939f/20220311_165818-min.jpg#%7B%22uuid%22%3A%22e9e4aaa8-1c48-4119-b436-43586777e17e%22%2C%22w%22%3A3024%2C%22h%22%3A4032%7D"><br>Step 2:&nbsp;<br>Insert the 7 <strong>slide's </strong>in each channel of the <strong>housing:</strong></p><p><img class="image_resized" style="width:65.63%;" src="https://media.prusaprinters.org/media/prints/148791/rich_content/50c17fb1-07d9-49d2-bf24-b727f16c161b/20220311_171158-min.jpg#%7B%22uuid%22%3A%221941ed4d-62bd-4daa-9b87-150d75b93807%22%2C%22w%22%3A4032%2C%22h%22%3A3024%7D"><br><br>Step 3: &nbsp;<br>Put the <strong>lift_wheel</strong> with knob on top of channels in the &nbsp;<strong>lift_wheel.</strong><br>make sure each peg on the slides are in the groves of the &nbsp;<strong>lift_wheel.</strong><br><img class="image_resized" style="width:47.42%;" src="https://media.prusaprinters.org/media/prints/148791/rich_content/921caf8d-8325-4ec4-b6bf-c41c267cd144/20220311_171257-min.jpg#%7B%22uuid%22%3A%2233e7c419-90fd-456c-b7b6-e9baaa0164be%22%2C%22w%22%3A3024%2C%22h%22%3A4032%7D"><img class="image_resized" style="width:47.64%;" src="https://media.prusaprinters.org/media/prints/148791/rich_content/ca3e48af-2cf4-4cc9-8b55-cbdd0afb75ce/20220311_171307-min.jpg#%7B%22uuid%22%3A%2268294ad9-cf24-4b01-8583-5a5ea1bfb087%22%2C%22w%22%3A3024%2C%22h%22%3A4032%7D"><br>Test that the mechanism turns smoothly.&nbsp;<br><br>Step 4:<br>Add a <strong>bowl </strong>to a socket in the <strong>housing </strong>and put dice int. test the mechanism. repeat for all <strong>bowl</strong>s.<img src="https://media.prusaprinters.org/media/prints/148791/rich_content/f64ec53e-a3e9-4770-a5aa-524d44fefc1c/20220311_182907.jpg#%7B%22uuid%22%3A%22cb6c427d-1a6e-4393-a86f-23389944f170%22%2C%22w%22%3A4032%2C%22h%22%3A3024%7D"><br><br>If stuff starts to snag during this process check the <strong>bowl </strong>you just inserted for ridges or other things that might get caught and try to fix using a exacto knife or small file.<br><br>Step 5:&nbsp;<br>Once all <strong>bowl</strong>s have been inserted you can glue the <strong>trim </strong>in place. make sure not to glue mechanism. Try to limit the amount of glue.<br><img src="https://media.prusaprinters.org/media/prints/148791/rich_content/4d16f0ea-f0b5-4bcc-a4ba-d320ca3eb189/20220311_180037-min.jpg#%7B%22uuid%22%3A%224781330b-8978-4653-95a9-48166aa51723%22%2C%22w%22%3A4032%2C%22h%22%3A3024%7D"><br>&nbsp;</p><p>Please post your results! :)<br>Happy printing!<br>&nbsp;</p>
