Floor Jack

pinshape

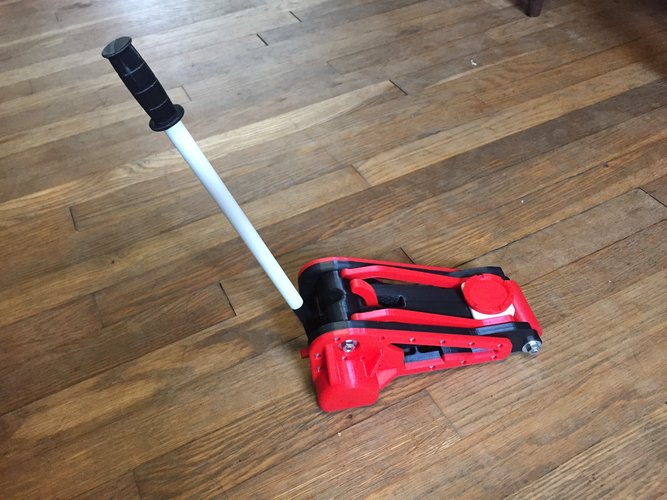

This is a functional model of a floor jack that has been successfully built. It can be raised from 50mm to 175mm with minimal effort using its handle, although it's not designed to lift heavy loads. The model was printed with a high level of infill at 50% to ensure stability and took approximately 50 hours to complete. In addition, the production required 800 grams of filament. To assemble the floor jack, you will need to attach forty two (42) No. 4, 3/8" button head screws and two (2) 1/4-20 x 4" long bolts. It is recommended that you grind a small amount off the end of the bolts for a more polished appearance.
