FlashForge Creator (wooden) PTFE Adapter

prusaprinters

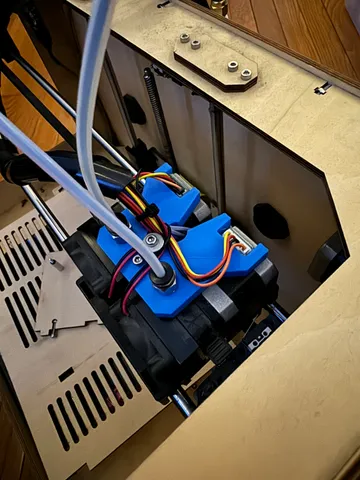

I recently acquired an old FlashForge Creator (with the wooden frame), but it was missing some parts - including one of the filament feeder tubes.  I'm not sure what the original ones were made out of, but I had some PTFE tube and fittings on hand and tossed this together to adapt the whole thing.  The mounting plate replaces the four clips on the back of the machine that hold on the old tubes, and the extruder plate goes over the extruder motors.  This was done really fast, so the holes are not threaded, they're just the correct size to screw M6 and M10 fittings into.  The rear plate (near the spools) takes M10 fittings, while the extruder plate takes M6 fittings.
