Film Washer

prusaprinters

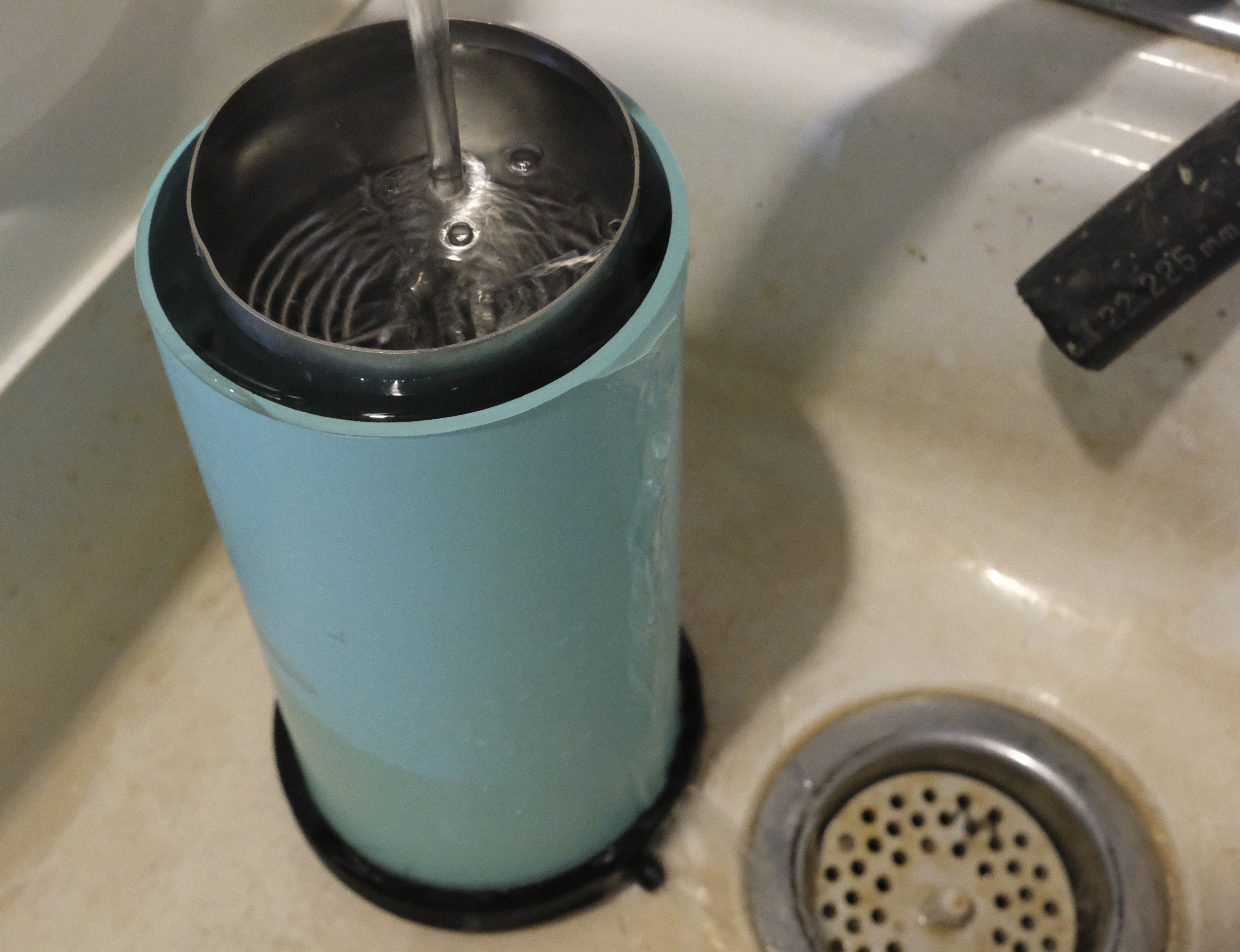

<p>Film washer for stainless steel developing reels.</p><h3>Non-printed parts:</h3><ol><li>Stainless steel developing tank, I used one sized for 2 120 reels or 4 35mm reels, but other sizes will work as well.</li><li>4" PVC pipe.</li></ol><h3>Assembly:</h3><ol><li>Print the base in ABS and the feet in TPU.</li><li>Glue feet into base.</li><li>Drill several holes in the bottom of the tank.</li><li>Cut the PVC pipe to about 5/16" longer than the tank.</li><li>Attach the base to the pipe using your waterproof adhesive/sealant of choice.</li><li>Place the tank into the base.</li></ol><h3>Operation:</h3><p>Place the film washer under a faucet and run water into the tank. &nbsp;The water will flow out through the bottom of the tank and drain over the side of the pipe. &nbsp;As a result, the reels will stay fully submerged in constantly flowing water. &nbsp;The small outlet in the base prevents heavier chemicals from settling on the bottom, and allows the washer to fully drain when not in use.</p>
