Filament tea cloth

prusaprinters

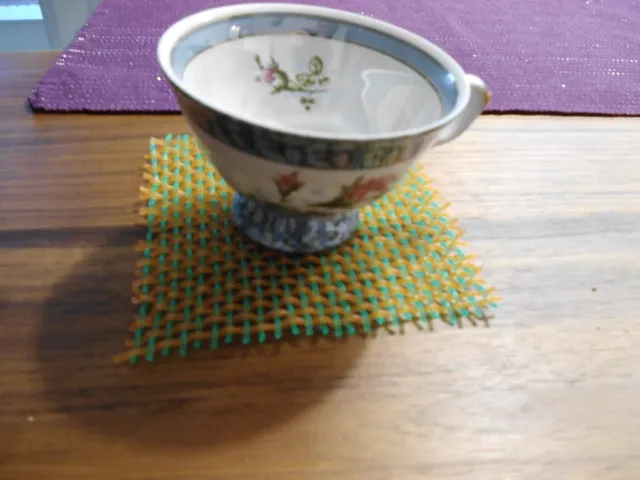

This machine bents Filament such you can "weave" filament like on a loom. Indgredients 2 loom_gear 2 loom_rolle 1 loom_case 2 comb 24 nails appr 18 mm long 8 bearing 14x5x5 3 skrews M5x20 1 skrew M5x10 1 wing skrew M5 2 M5 Nut 1 Water Bowl waterproof gloves PET and ABS Filament Alu foil Flat Iron Assembly: Print all 5 loom parts in ABS! print 2 comb in any plastic Glue the M5 skrew into loom_gear Attach all 8 bearings into the rolle and gears install 2 rolle into the lower holes install the nails into the 24 holes of the gears install the one gear with M5x20 skrew install the other gear with M5x10 and M5 wing skrew. the skrews must push tight to each other to conduct force. Connect the two combs with a filament strip as shown in the picture Production: Fill the bowl with HOT Water Install the PET Filament into the machine. You have to uninstall one gear for that Wear the Gloves. Make sure your dont burn yourself. NO WARRANTY! Sink the machine inside the Water and rotate the Wing skrew handle and create e.g. 2 Meters of ZIGZAG Filament Weave the Filament and assemble theTee cloth(or whatever you want) optionally: Wrap it into ALU Foil firmly and iron it. Make sure it does not WARP! Category: Art Tools
