Filament Dry Tube Mounts

prusaprinters

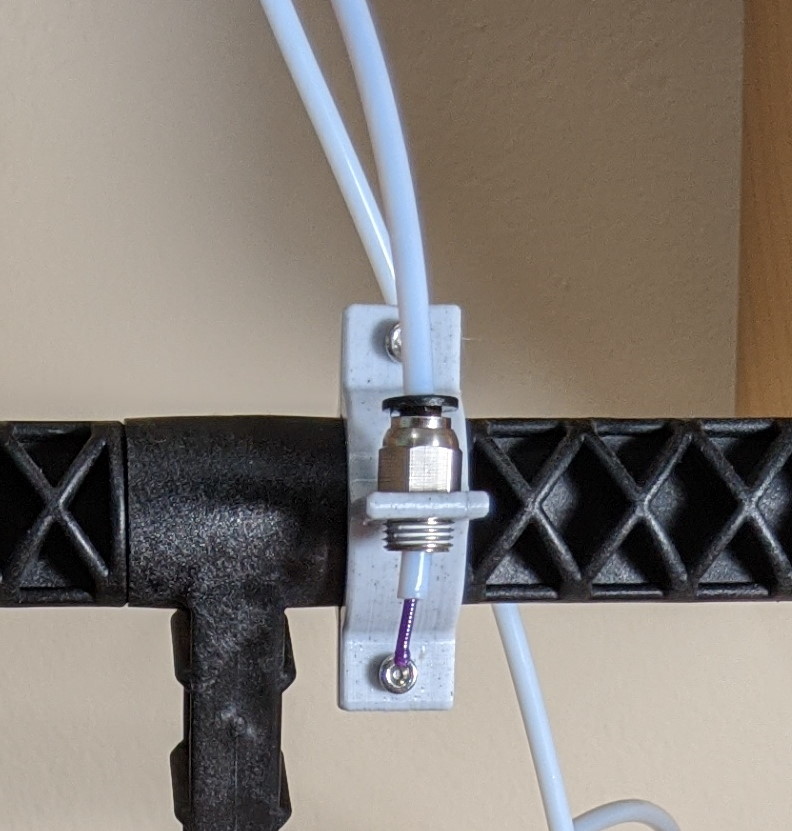

<p>I print directly from dry boxes to the printer using Bowden tubing to route the filament. This allows me to keep the rolls in dry storage and the Bowden tube protects the filament from humidity between prints with several options at the ready on the printer.</p> <p>These mounts attached the Bowden tube to either the printer steel frame or the standard spool holder as you prefer. Frame mounts just snap on, but don't give full vertical clearance for tallest prints. Spool holder mounts require two M8x8mm screws and 2 M8 nuts for attachment.</p> <p>Bowden tubes pass through the suggested fittings for a few millimetres to protect filament from any sharp metal edges.</p> <p>The roundclampfrontsmall.stl has a slightly smaller hole for the PC4-01 fitting if it's loose with your fittings/printer combination.</p> <h3>Print instructions</h3><p>PETG, 0.20mm, 15% infill, 3 perimeters<br/> Print laying on side, no supports needed</p> <p>Fittings<br/> Model: PC4-01<br/> Screw threaded: M10<br/> OD: 4MM<br/> Something like this: <a href="https://www.amazon.com/dp/B0734J5PDV/ref=cm_sw_em_r_mt_dp_U_gY5cFbZJ5888T">https://www.amazon.com/dp/B0734J5PDV/ref=cm_sw_em_r_mt_dp_U_gY5cFbZJ5888T</a></p>
